Eurovac Solutions

High Volume Fume Extraction

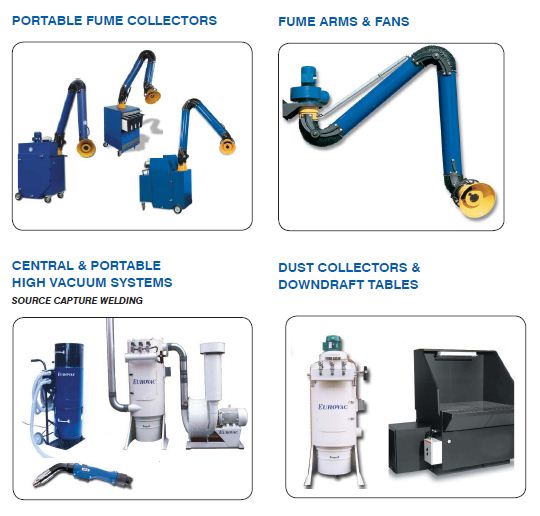

Eurovac offers a wide variety of High Volume Fume Extraction System options depending on your facility requirements.  The following are some of the fume extraction solutions Eurovac can offer:

• Flexible Fume Extraction Arms which can be easily maneuvered just above the technicians welding gun

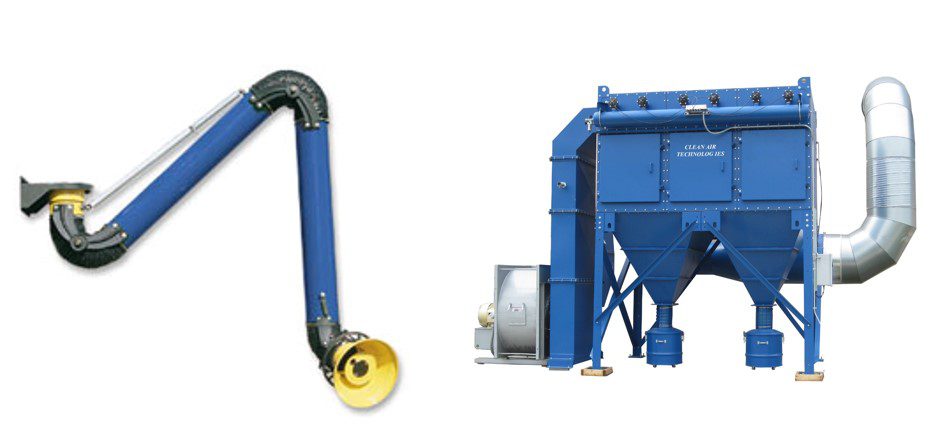

• Cartridge Dust Collectors connected to Fume Arms, Robotic Weld Cells or C&C Laser/Plasma Cutters
• Floor or Ceiling Mounted Air Cleaners for rising fumes

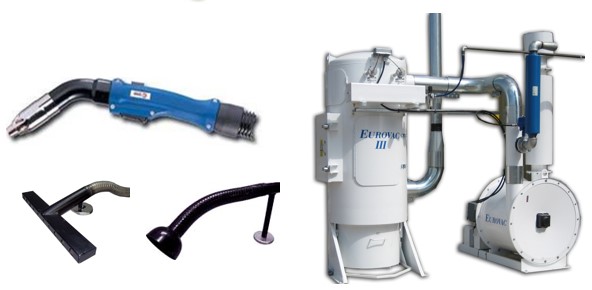

High Vacuum Source Capture Fume Extraction

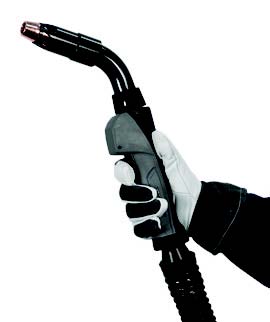

High Vacuum Source Capture Fume Extraction Systems capture dangerous welding fumes before they enter the technicians breathing zone as welding guns now come vacuum ready right at the tip of the gun.  Eliminate the need for a costly air makeup system as source capture welding guns require only 80 to 100 CFM each.

• A

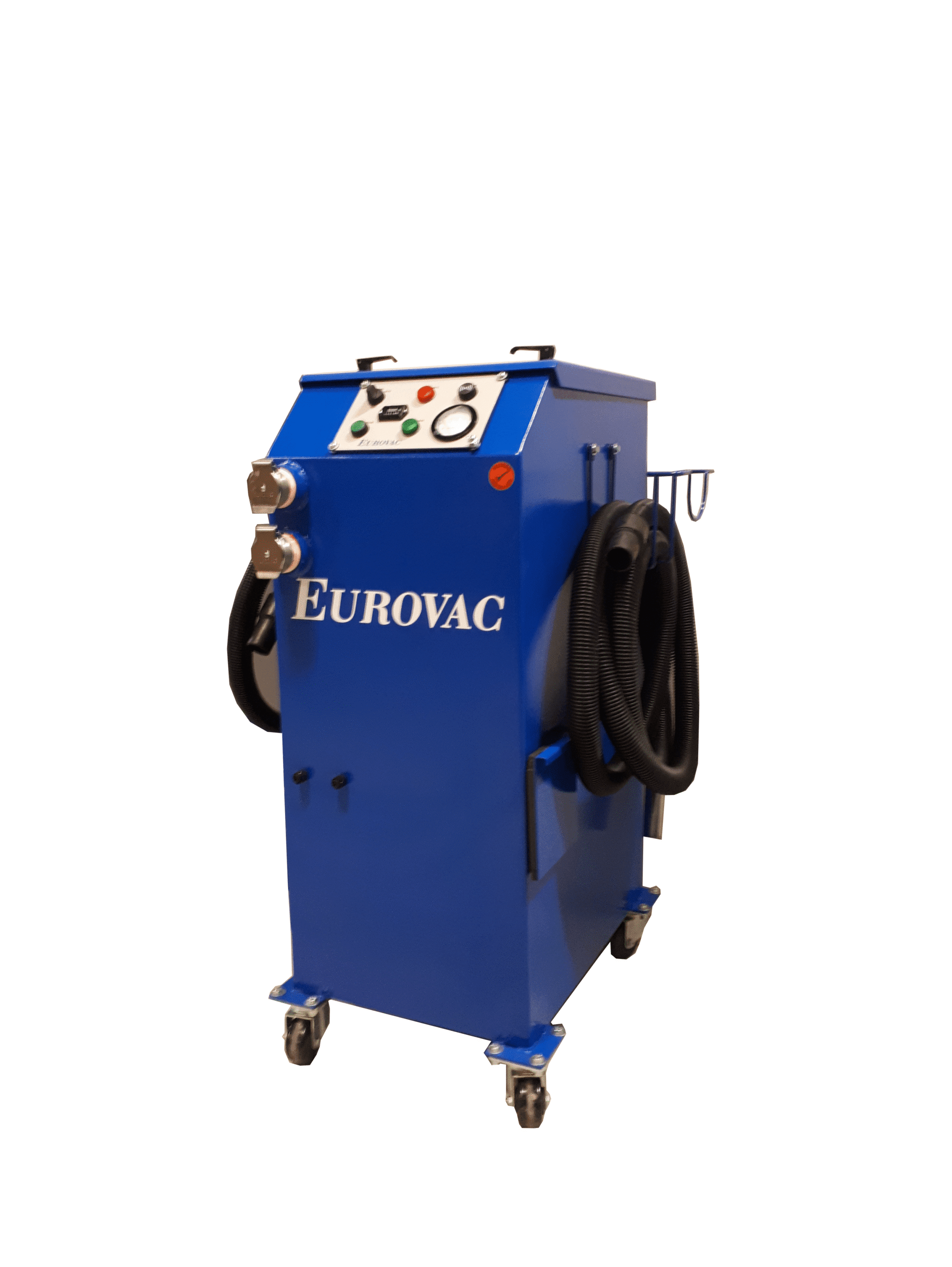

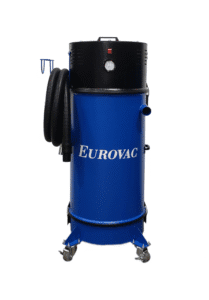

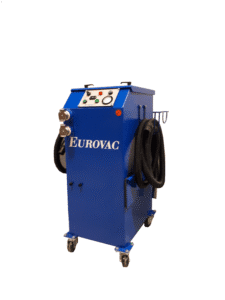

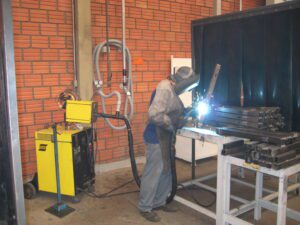

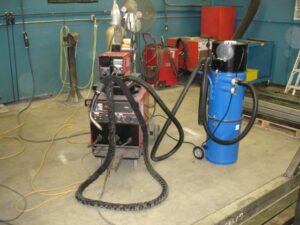

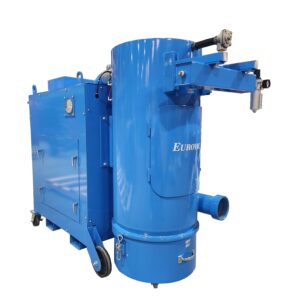

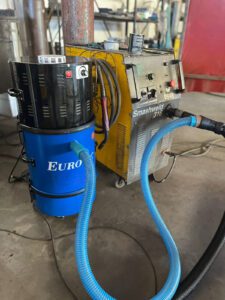

  Portable Vacuums - Welding

  Eliminate welding fumes at the source with a Eurovac Welding Portables and source capture welding guns and fume attachments. • Captures dangerous welding fumes before they enter the welder’s breathing zone • Ideal for mig, tig, arc and robotic welding • No lost production time moving large fume extraction arms every time the welder changes position • Source capture welding guns or welding attachments only require 80-100 CFM or less each; eliminating the need for costly air makeup systems required with high volume systems • Several filter options are available, including combination cyclone separator and polyester cartridge filters with automatic pulse jet cleaning

  Read More
• B

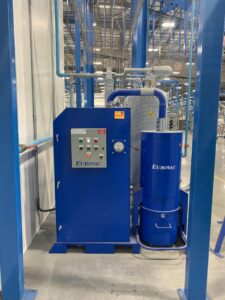

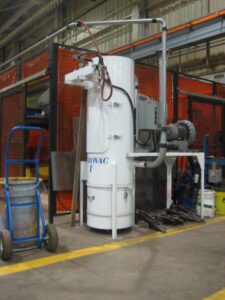

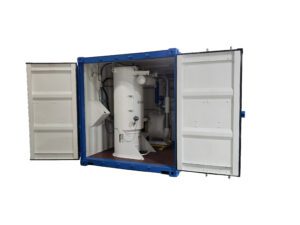

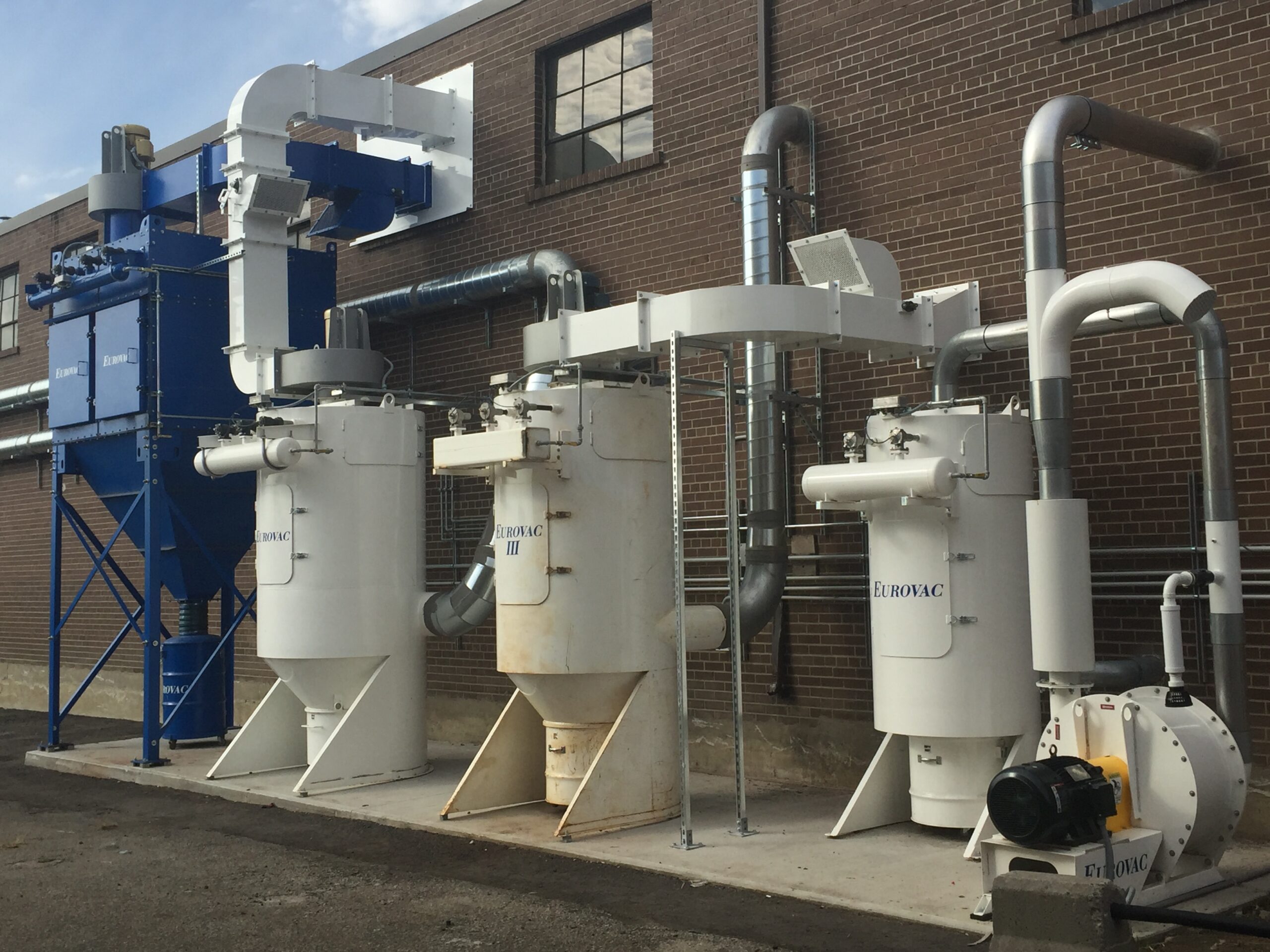

  Central Vacuum Systems (Welding)

  Eurovac has a complete range of central high vacuum systems designed to capture dangerous welding fumes right at the gun, before the fumes enter the breathing zone. Vacuum systems range from 5HP to 75HP (2 to 50 Technicians) and include high end filtration with automatic filter cleaning to ensure your system will run all day every day with little to no maintenance.

  Read More
• C

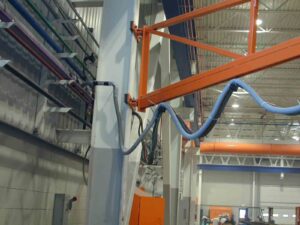

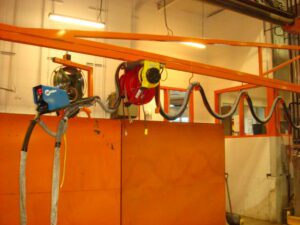

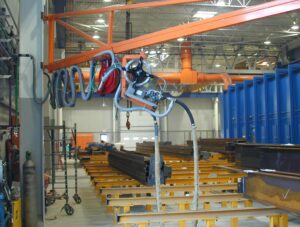

  Welding - Drops, Pipe & Fittings

  Eurovac systems are designed for convenient use with vacuum drops positioned at every welding bay. Systems will be designed with 2” tubing at the drops and graduating up to 8” (depending on system size) back at the central equipment which delivers a typical air speed of 4,500 feet per minute. Galvanized steel tube, bends and fittings are used to ensure system is grounded thus avoiding static electricity build up and potential shocks. As well, galvanized bends and fittings come standard with long radius sweeps which ensure your system is operating at its peak vacuum level.

  Read More
• D

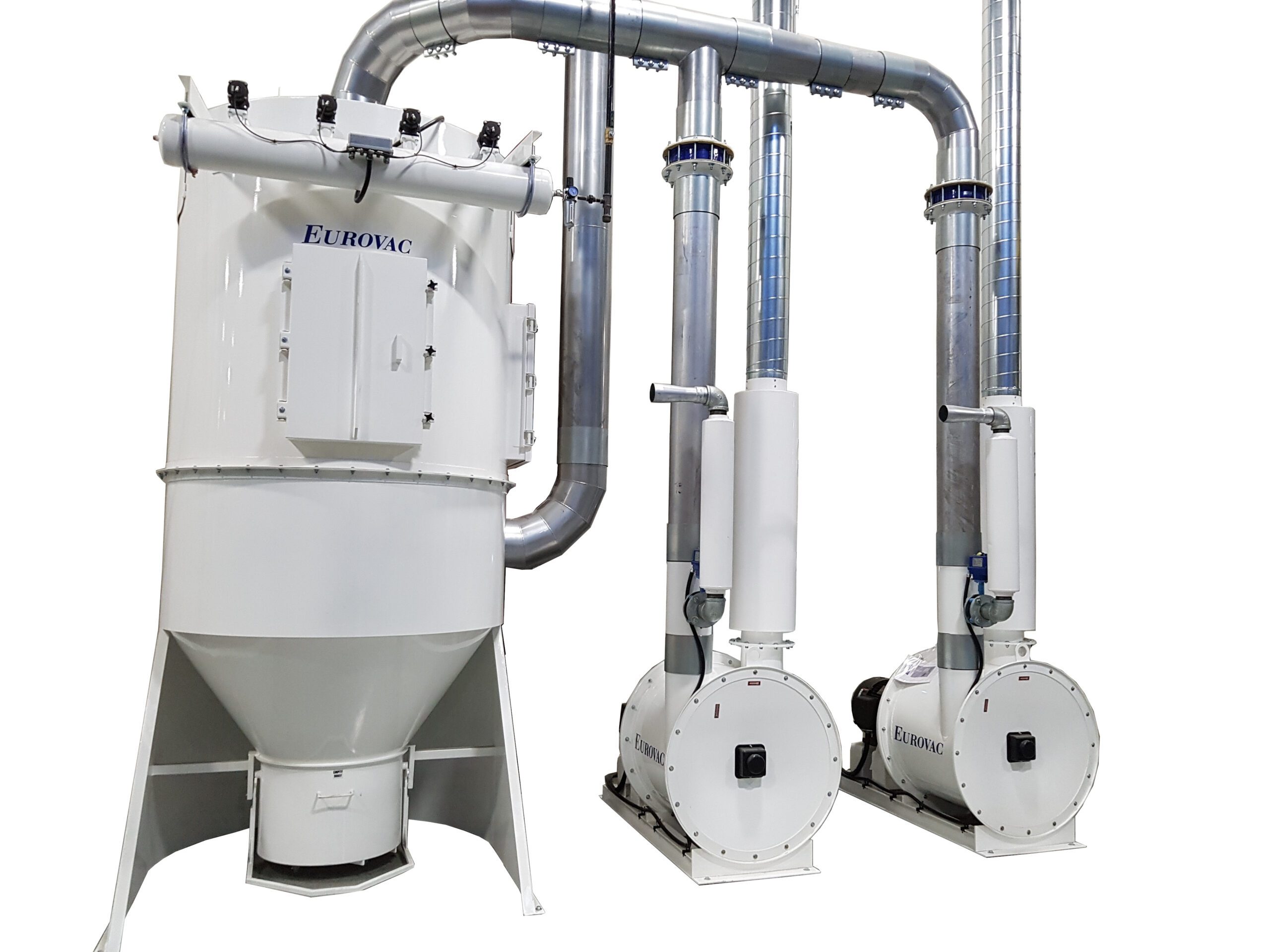

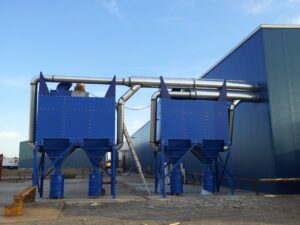

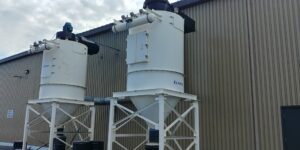

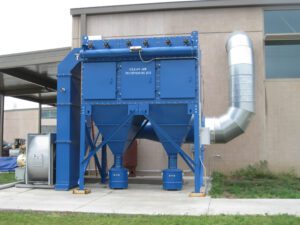

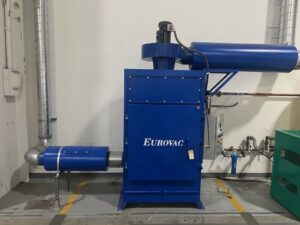

  Cartridge Dust Collectors

  Unlike many equipment manufacturers who are limited to only one or two types of dust collectors, Eurovac offers a wide variety of systems ranging from highly efficient vertical cartridges arrangement to integrated cyclonic separators when large amounts of dust are present in the air stream. The fully automated control panels ensure that minimal maintenance will be required. If no toxic fumes are generated in the process, it is possible to recycle clean air back in the facility. Depending on the nature of the dust or smoke, Eurovac will select certified high efficiency pleated filters or bags. The vessel robust steel construction may be equipped with NFPA safety features such as explosion vents or suppression devices. Our engineering staff will recommend energy conscious owners and plant managers the use of a variable frequency drive (VFD) if not all work stations are required to operate simultaneously.

  Read More
• E

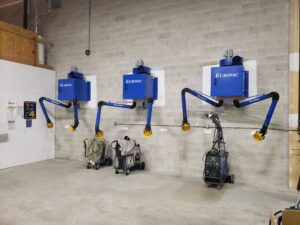

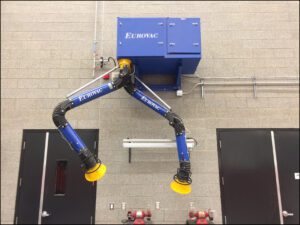

  Overhead Weld Dust Collector (Fume Arms)

  Overhead Fume Arm Collectors are easy to install and save on floor space which very often is at a premium within production shops. Systems utilize industrial grade fans, high end filtration and sound attenuation which delivers continuous high performing, quite operation.

  Read More
• F

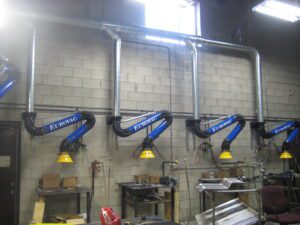

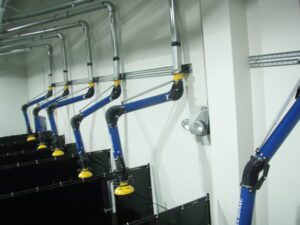

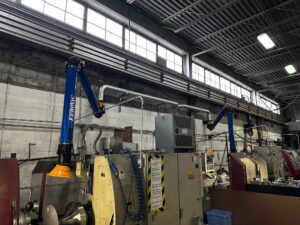

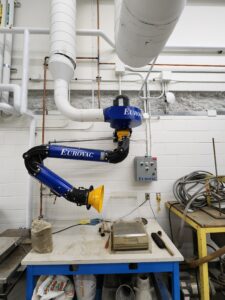

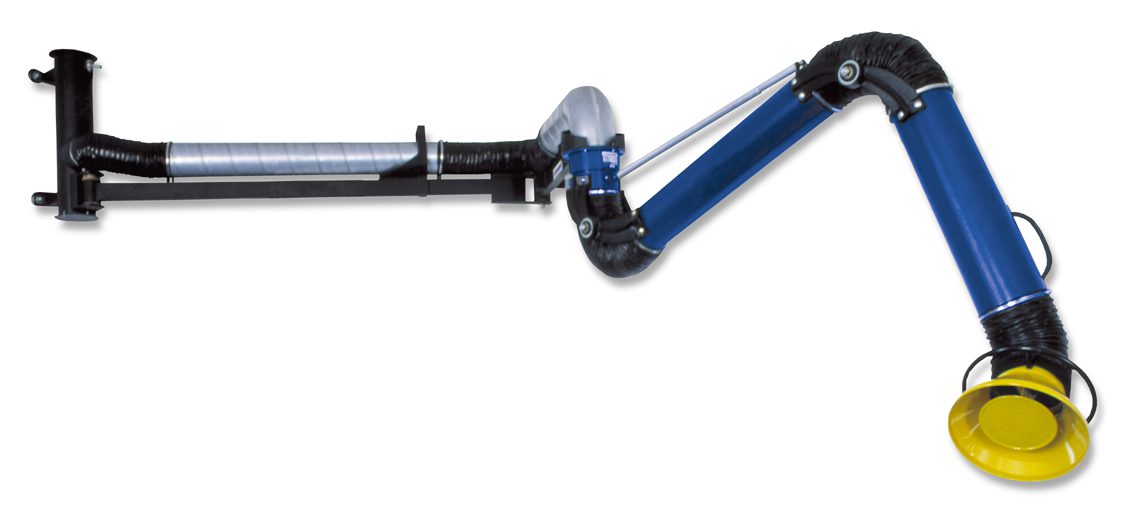

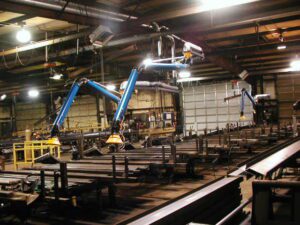

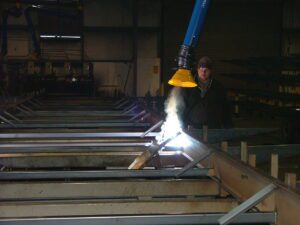

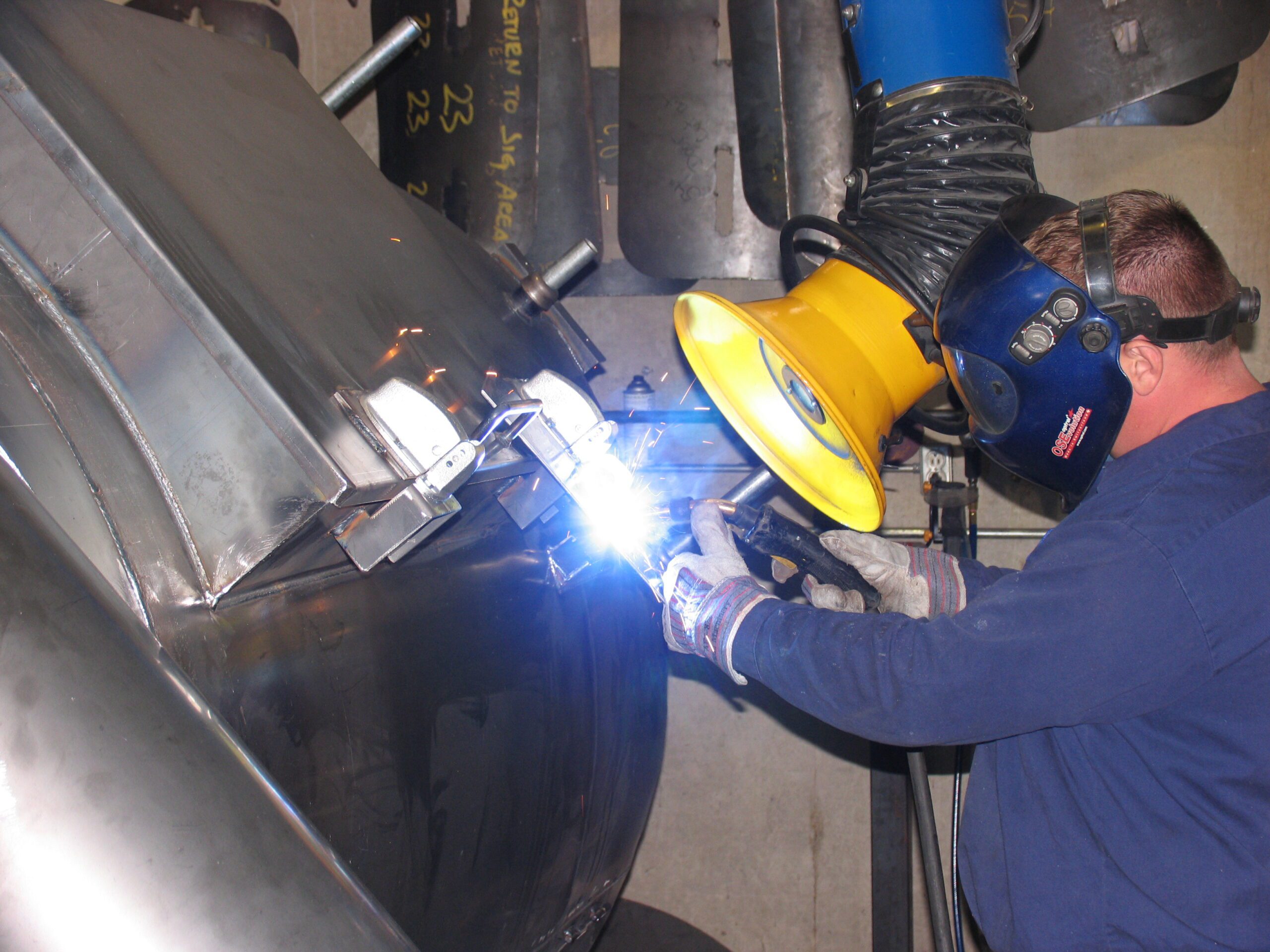

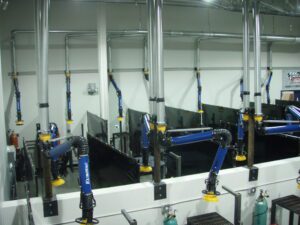

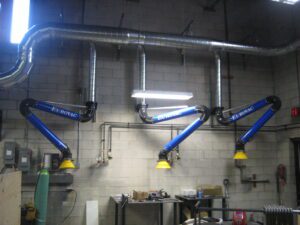

  Fume Arms

  Eurovac self-supporting arms provide the most economical and effective methods for the capture of fumes. Contaminants are removed at their source. The use of self-supporting joints, flexible hoses and smooth bore tubing allow for easy placement of the arm’s hood near the source of a problem.

  Read More
• G

  Portable Extractors

  Eurovac’s portable extractor units are designed to capture and filter dry impurities created during welding, grinding and the cutting of metals. • Meets OSHA air quality standards and increases health and safety standards by minimizing hazards that cause respiratory ailments • Standard arm measures 6” in diameter and fully extends to 10-feet. Other sizes also available on request. • Self supporting joints and flexible hoses for easy placement with smooth bore tubing for unimpeded air movement • Excellent suction at hood for maximum fume extraction • Unit reduces facility maintenance costs by eliminating smoke and dust before particles to settle on equipment and work surfaces

  Read More
• H

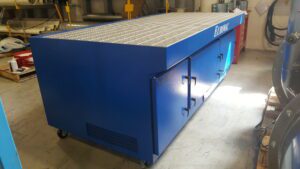

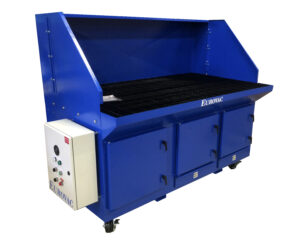

  Downdraft Tables (Dry)

  Eurovac’s line of Downdraft tables,Downdraft Sanding Tables & Down Draft Benches offer a “Hands Free Method of Capture at Source” of Fumes and Dust. Tables are available with working surfaces from 2 1/2’ x 2 1/2’ to 4’ x 8’, and are available with automatic self cleaning filters. Typical applications include welding smoke, metal grinding and deburring, dust collection from plastics, composite and wood materials, odor control from gluing and painting, plasma cutting, batching & weighing, soldering, as well as finishing processes (i.e. buffing and polishing). All tables comply with local and federal clean air requirements.

  Read More
• I

  Air Cleaners

  Eurovac Air Cleaners are an ideal option for secondary source capture of particulate that may have escaped the primary source capture method such as source capture sanding, vacuum MIG guns or fume arms.

  Read More
