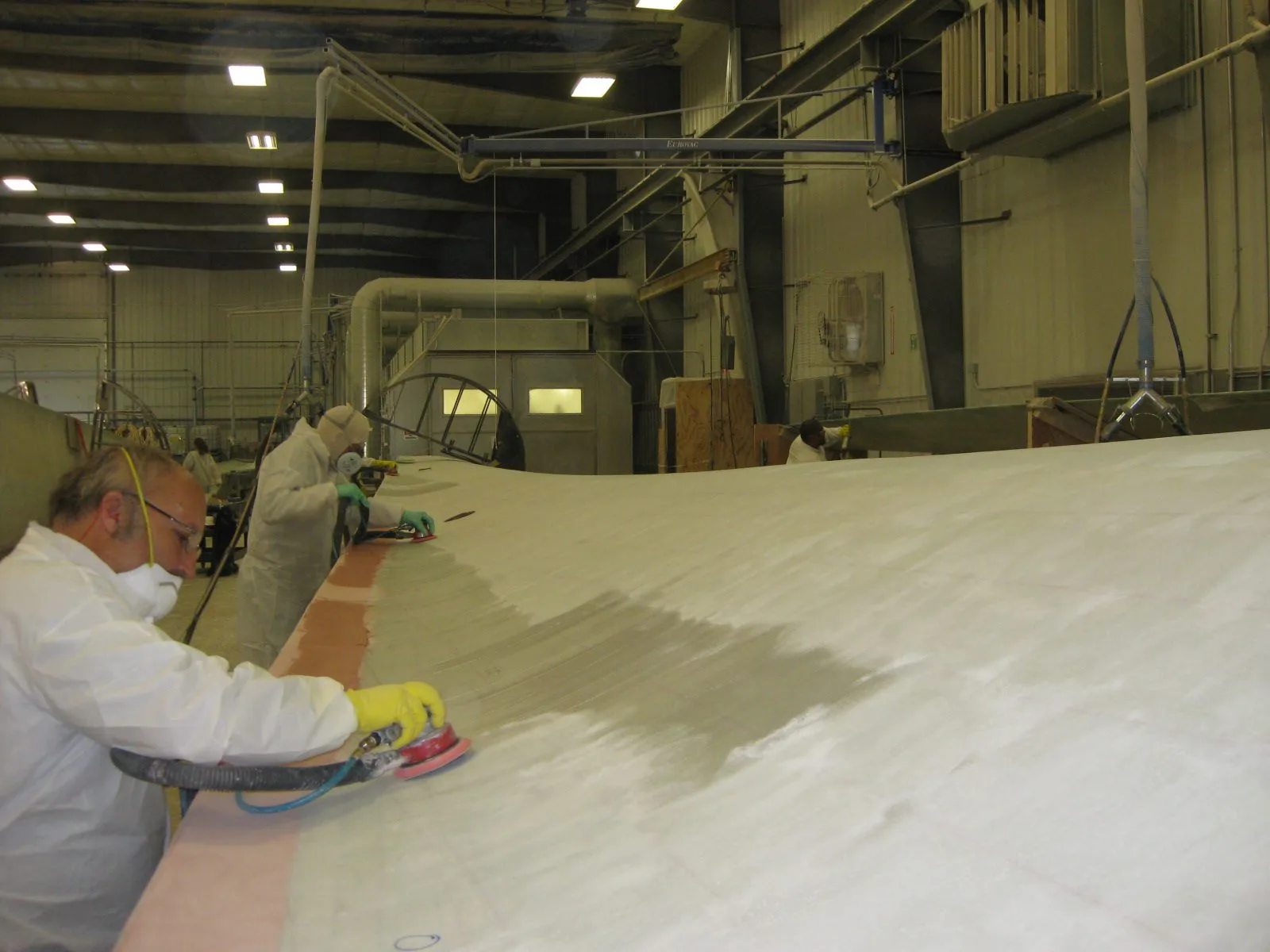

Industrial Dust Extraction (Aerospace, Composite, Etc)

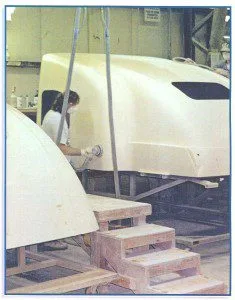

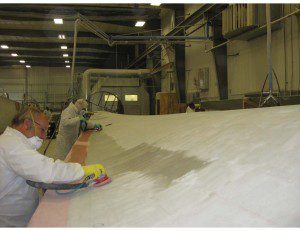

A Eurovac central or portable high vacuum dust extraction system, used with appropriate vacuum-assist tools, removes virtually all sanding or cutting dust and fumes right at the source – eliminating them before they get into the air that you and your staff breath.

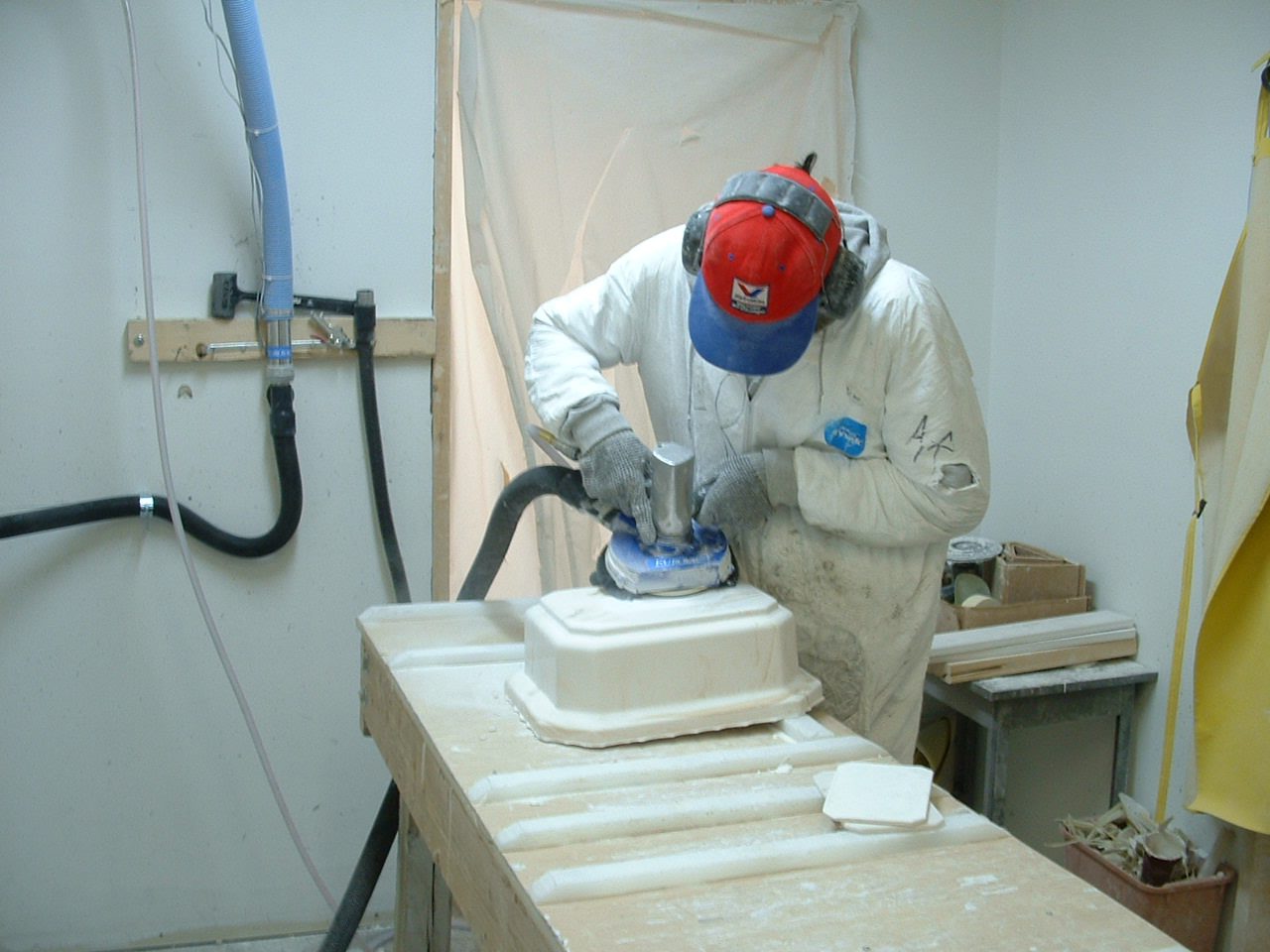

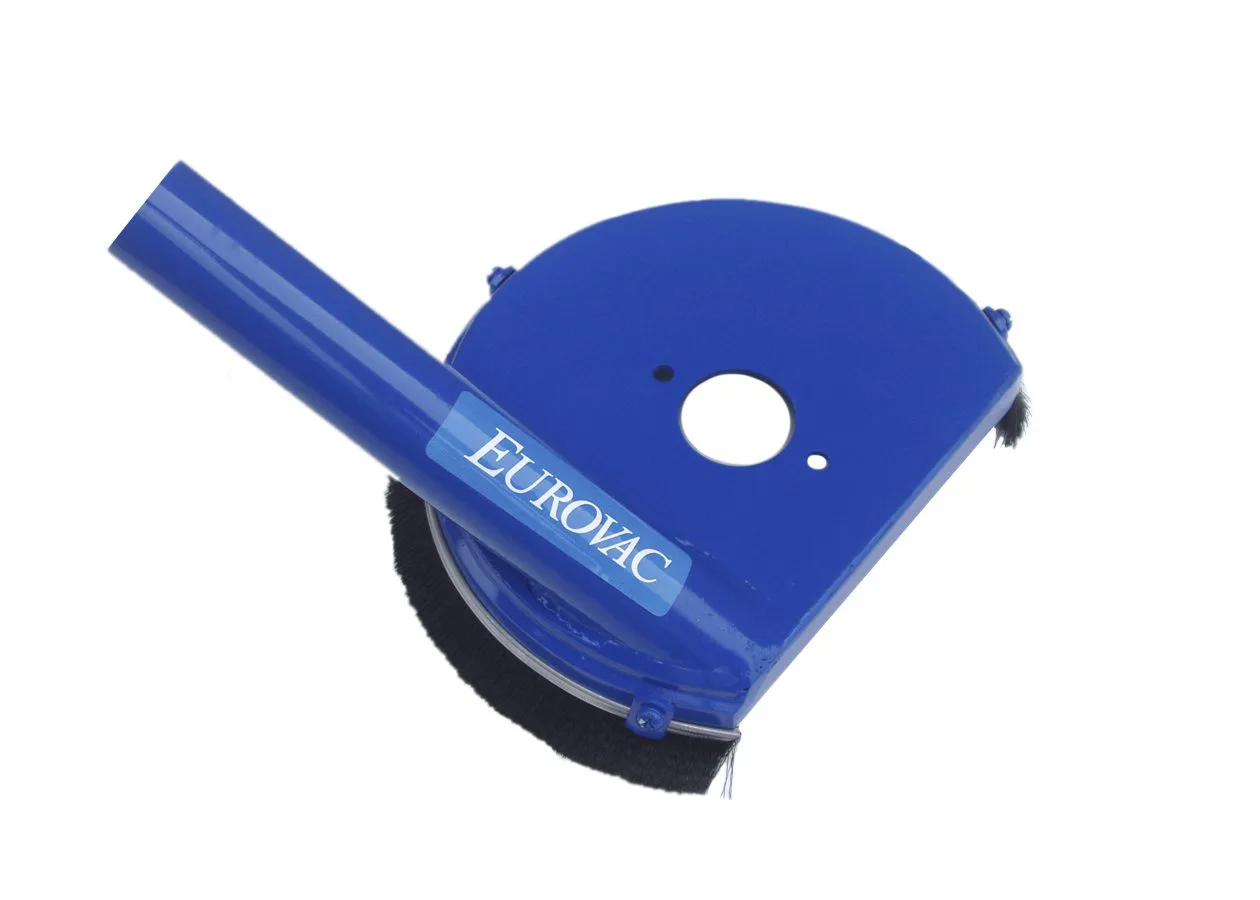

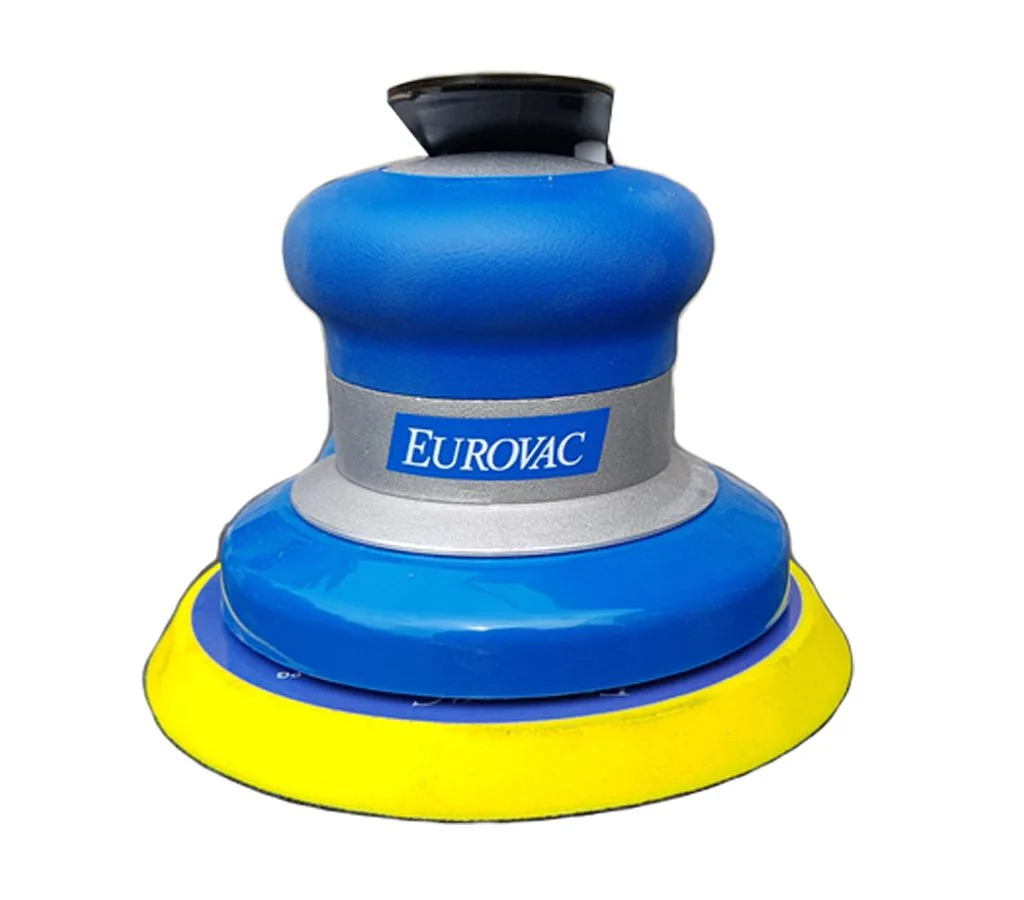

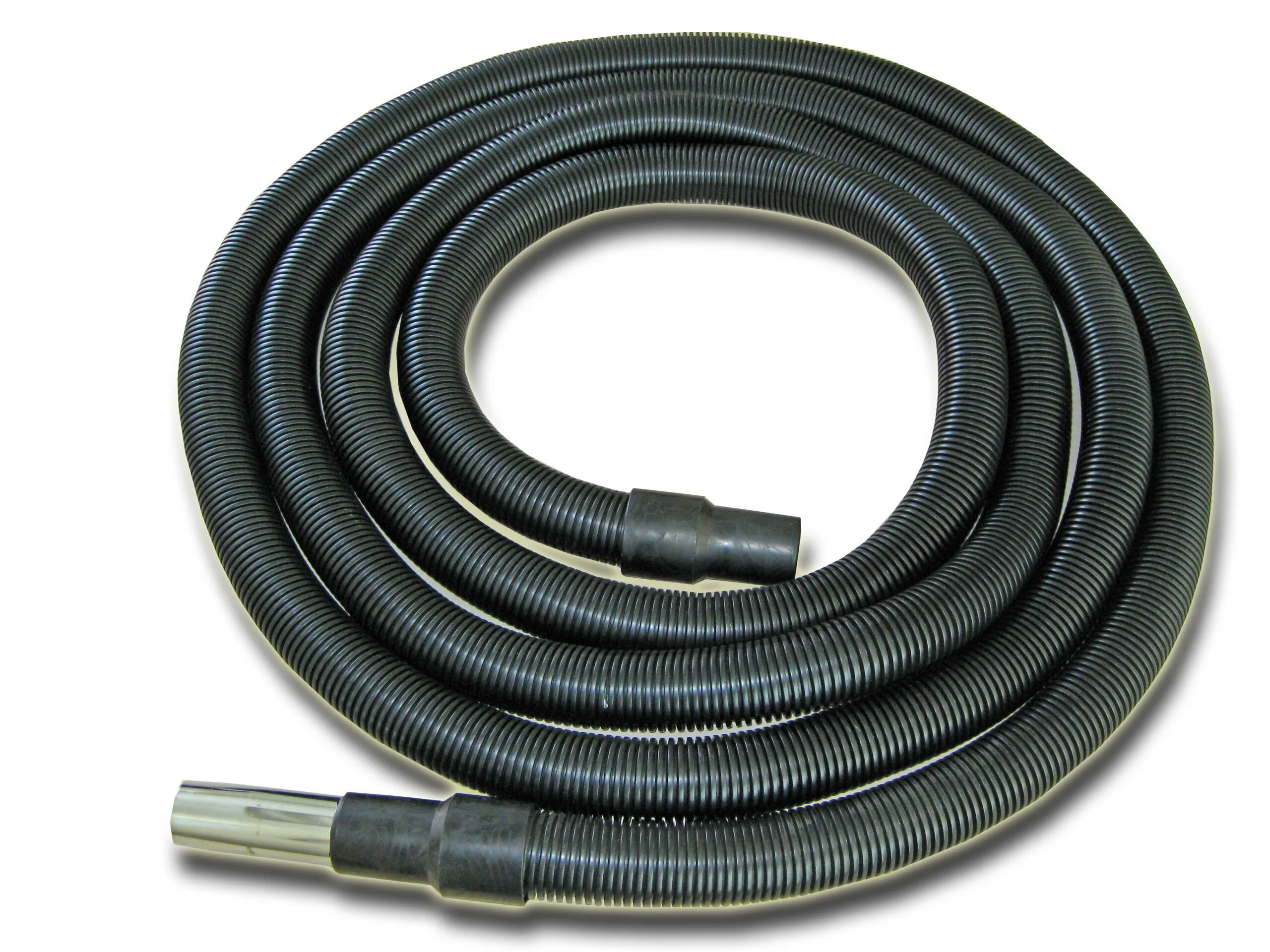

Eurovac high vacuum systems are ideal for source capture when used with vacuum assist hand tools, such as sanders, grinders, saws and routers. With hand tools, a high vacuum system (10″ to 100″ Water Column) is necessary to offset friction losses with small diameter hoses (1″ to 2″ vacuum hoses).

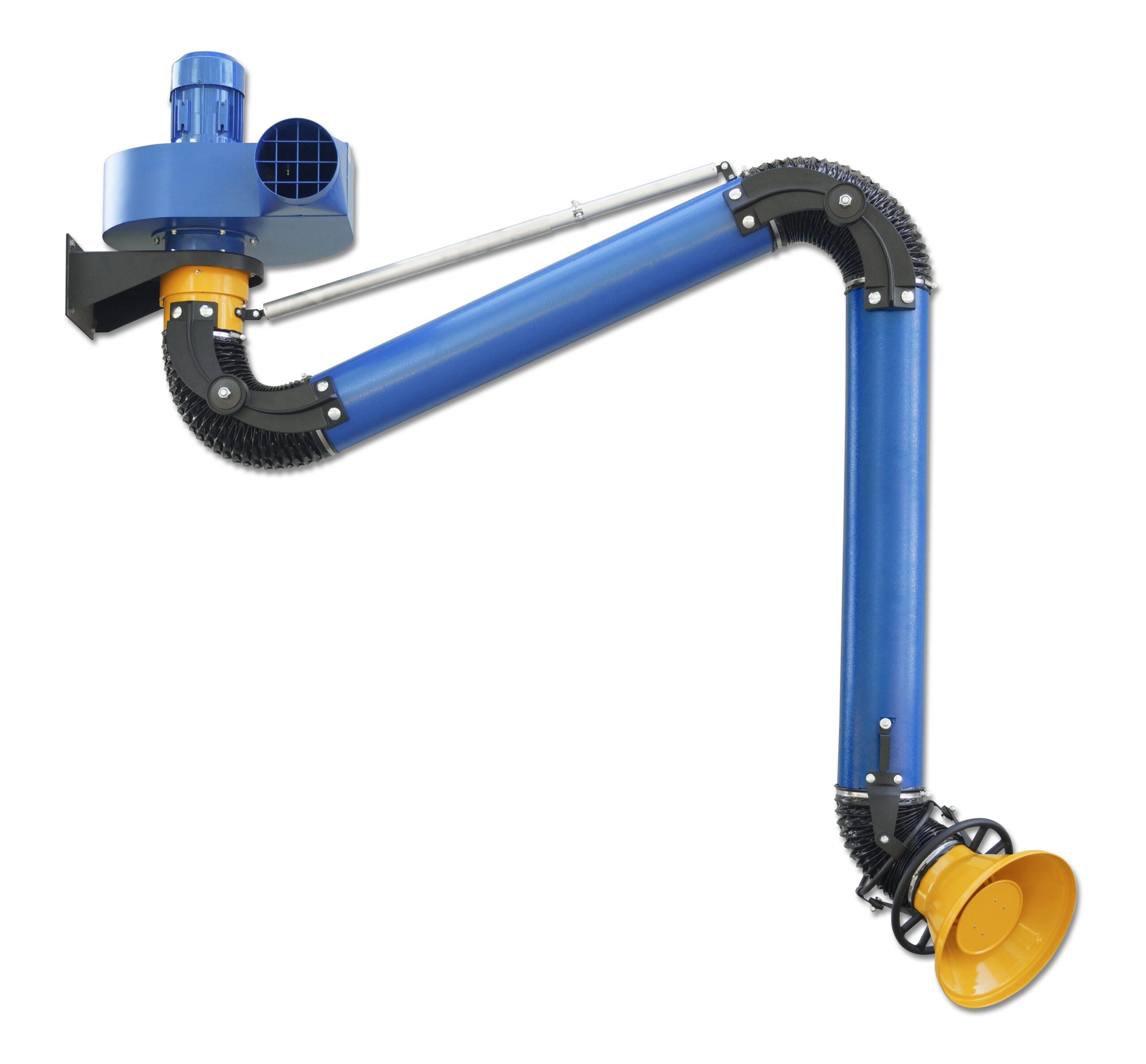

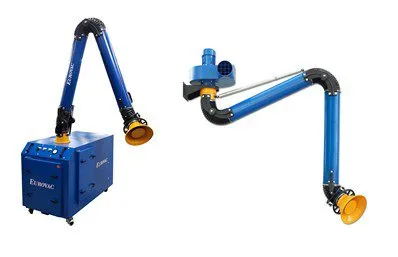

Eurovac also has a complete range of high volume dust and fume extraction systems for welding, saws, routers, grinders and planers.
• Heavy-duty welded construction throughout.
• State-of-the-art filtration featuring primary cyclonic filtration and secondary polyester cartridge filters, with automatic compressed air Pulse Jet cleaning.
• Alternate filtration systems are available for specific applications.
-
A

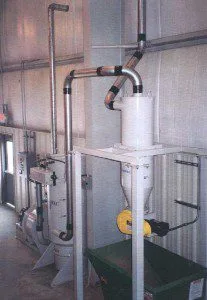

Central Vacuum Systems (Industrial)

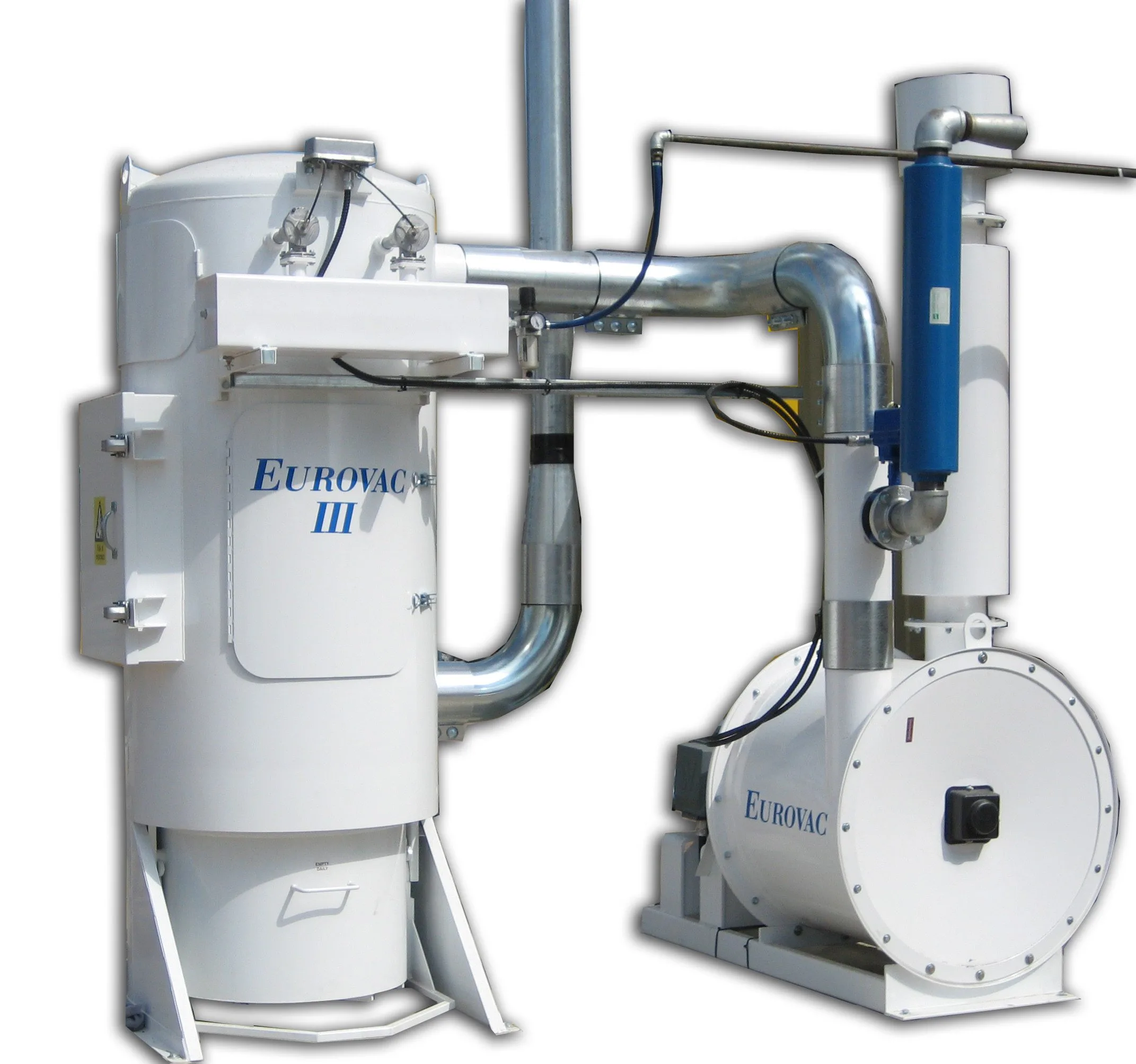

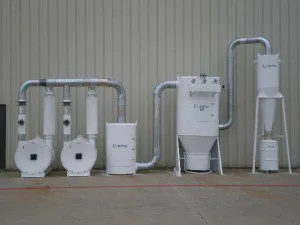

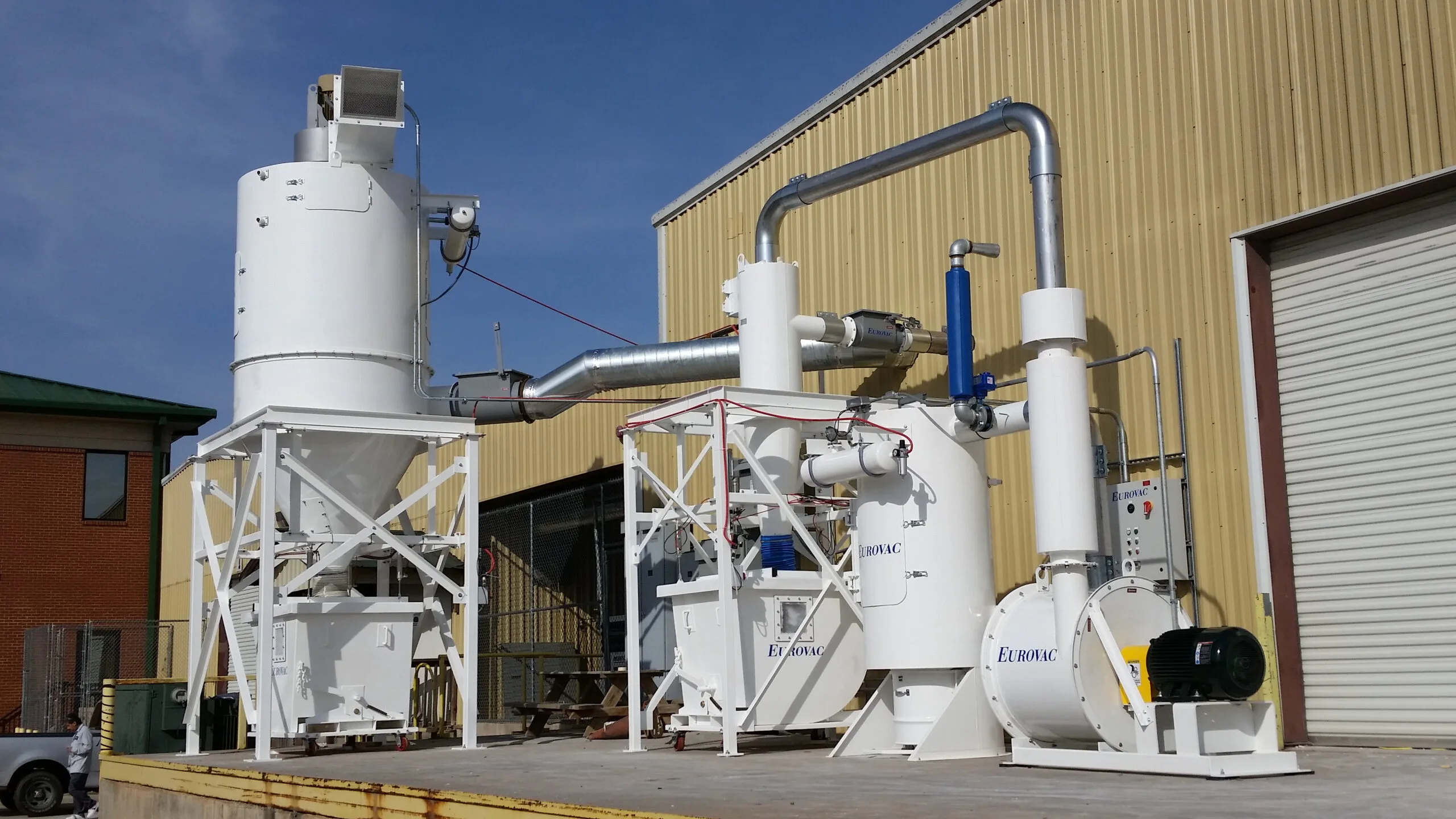

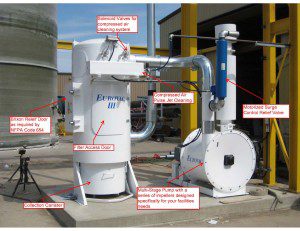

We’re the central vacuum specialists with products for every need and budget. Eurovac offers industrial grade vacuum producers and superior filtration which will ensure your system runs at a high vacuum level all day, every day with minimal maintenance requirements. We are here to assist with every step of the process from the initial engineered layout design all the way to the final installation and commissioning.
Read More -
B

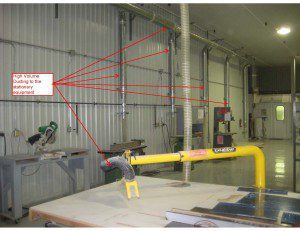

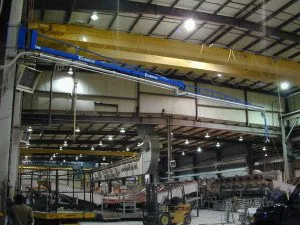

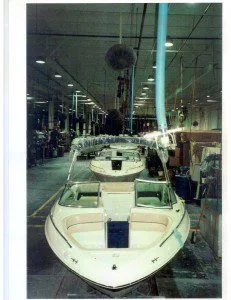

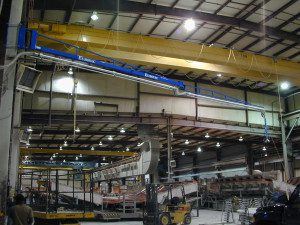

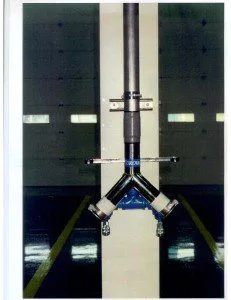

Industrial - Drops, Pipe & Fittings

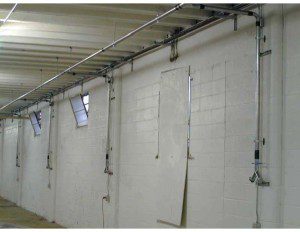

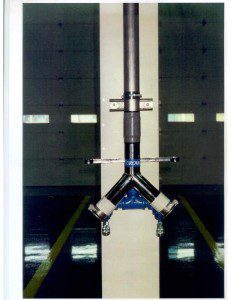

Eurovac systems are designed for convenient use with vacuum drops hanging (2” vacuum hose attached to pipe overhead) or wall/pillar mounted (2” pipe running down the wall) close to the operators work station. If a technician is working with pneumatic tools, the vacuum drops typically get run in conjunction with the compressed air so the air and vacuum are working together. Systems will be designed with 2” tubing at the drops and graduating up to 8” (depending on system size) back at the central equipment which delivers a typical air speed of 4,500 feet per minute. Galvanized steel tube, bends and fittings are used to ensure system is grounded thus avoiding static electricity build up and potential shocks. As well, galvanized bends and fittings come standard with long radius sweeps which ensure your system is operating at its peak vacuum level.
Read More -
C

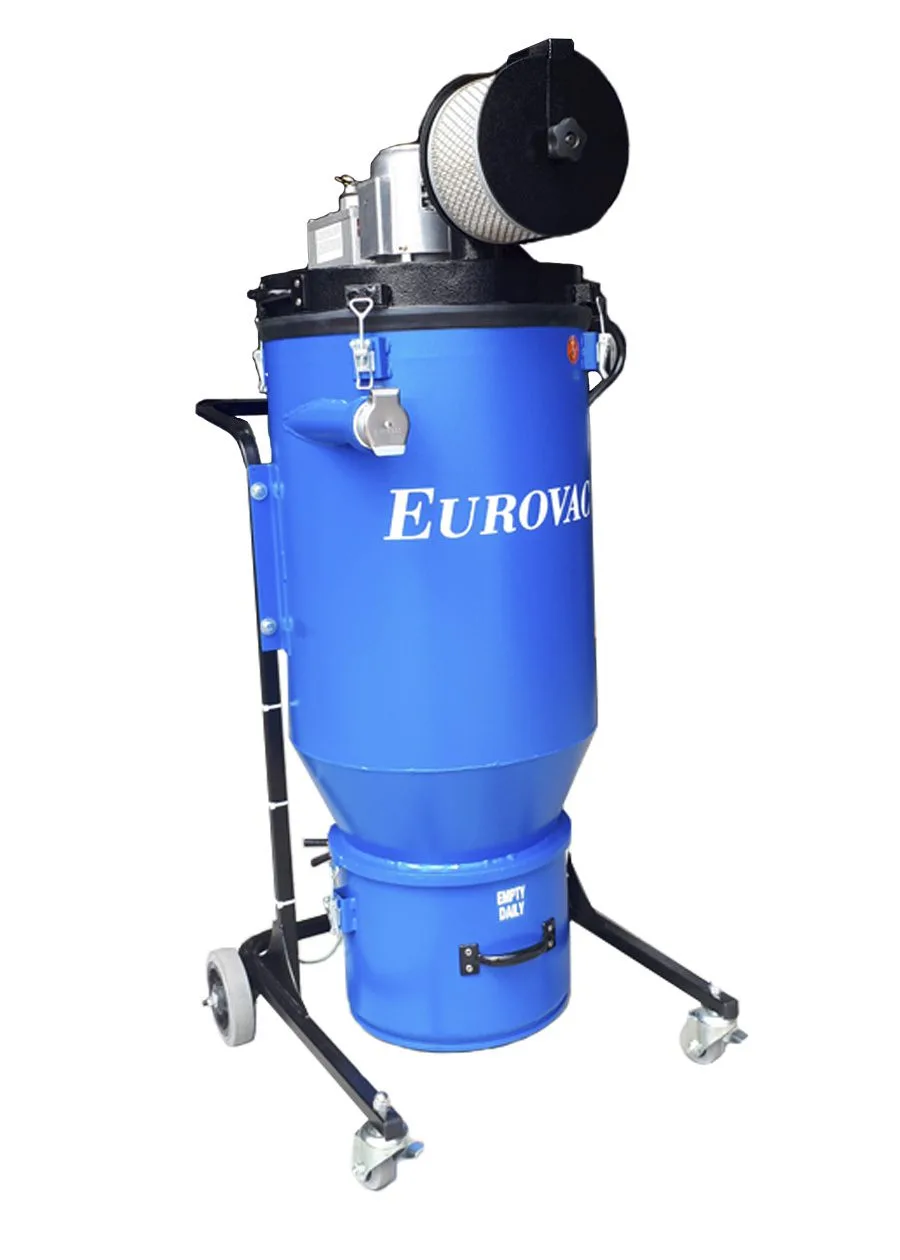

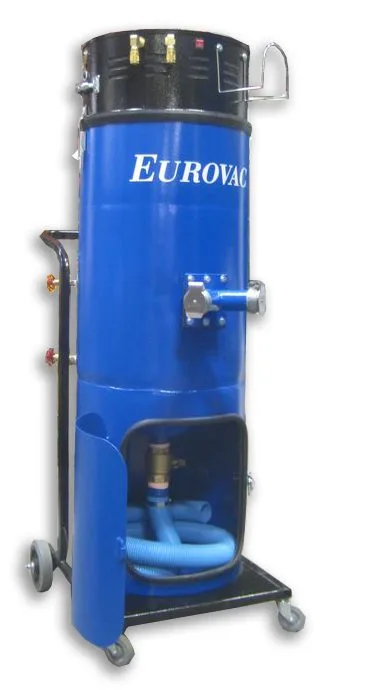

Portable Vacuums - Sanding & Grinding

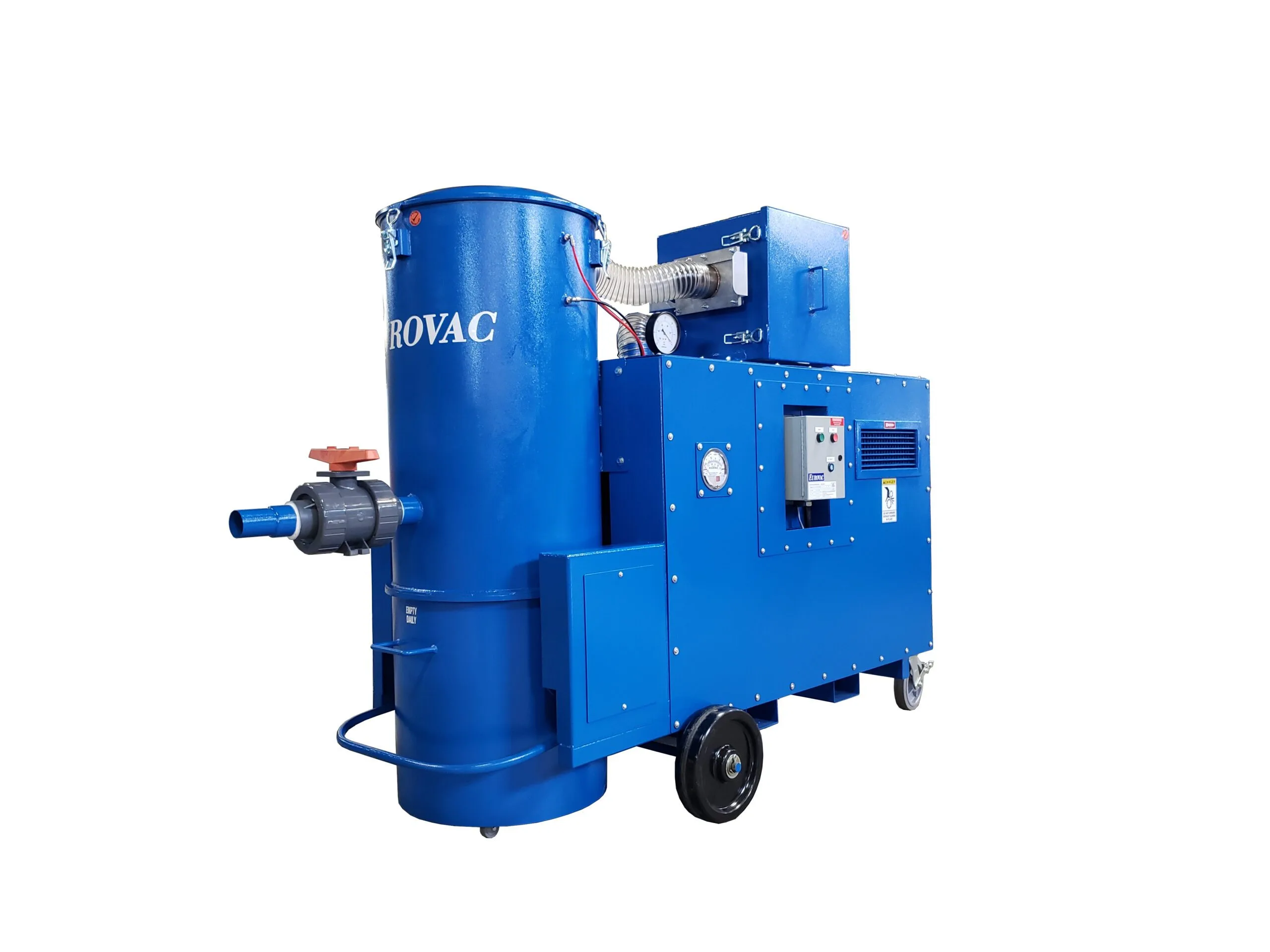

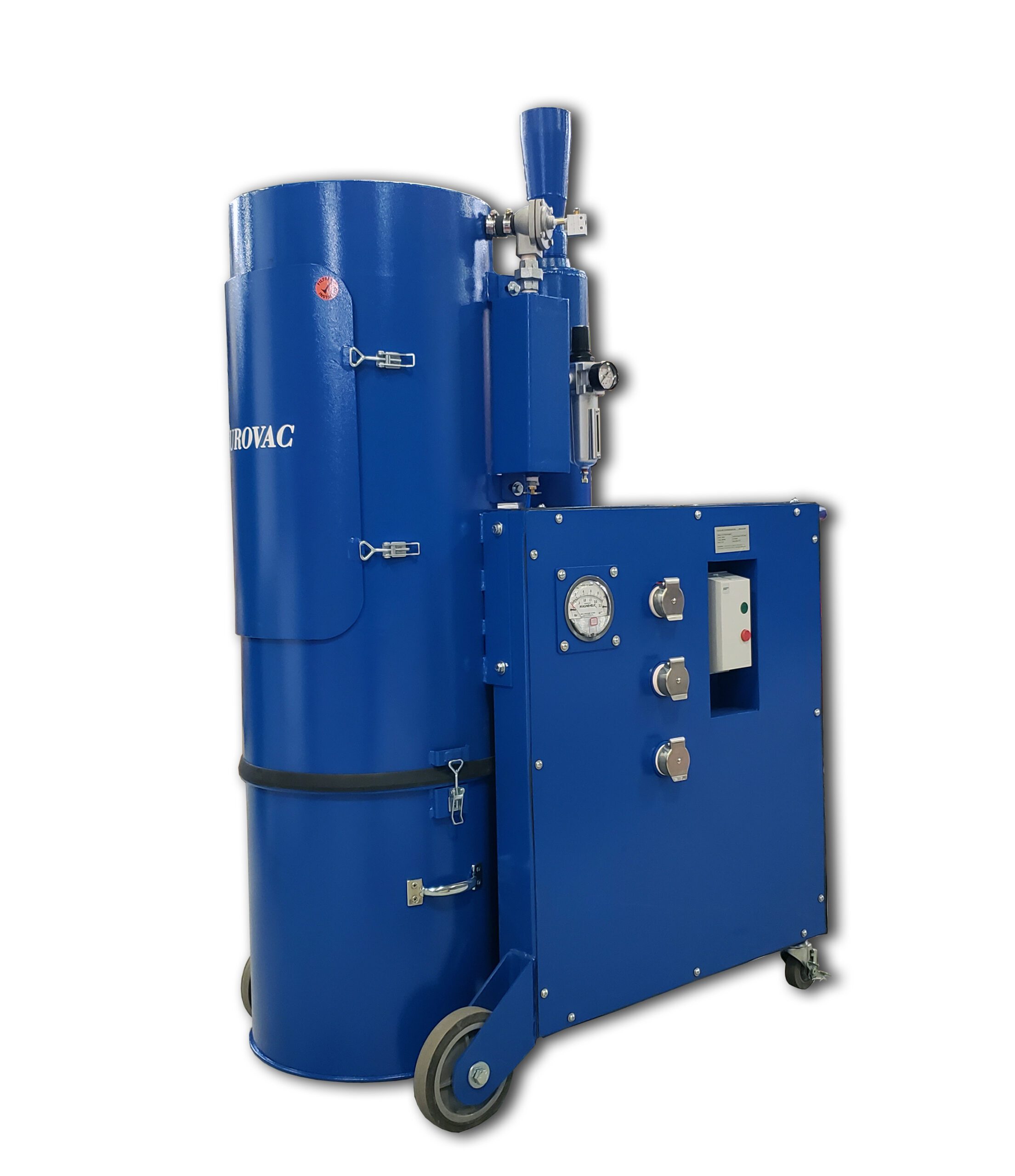

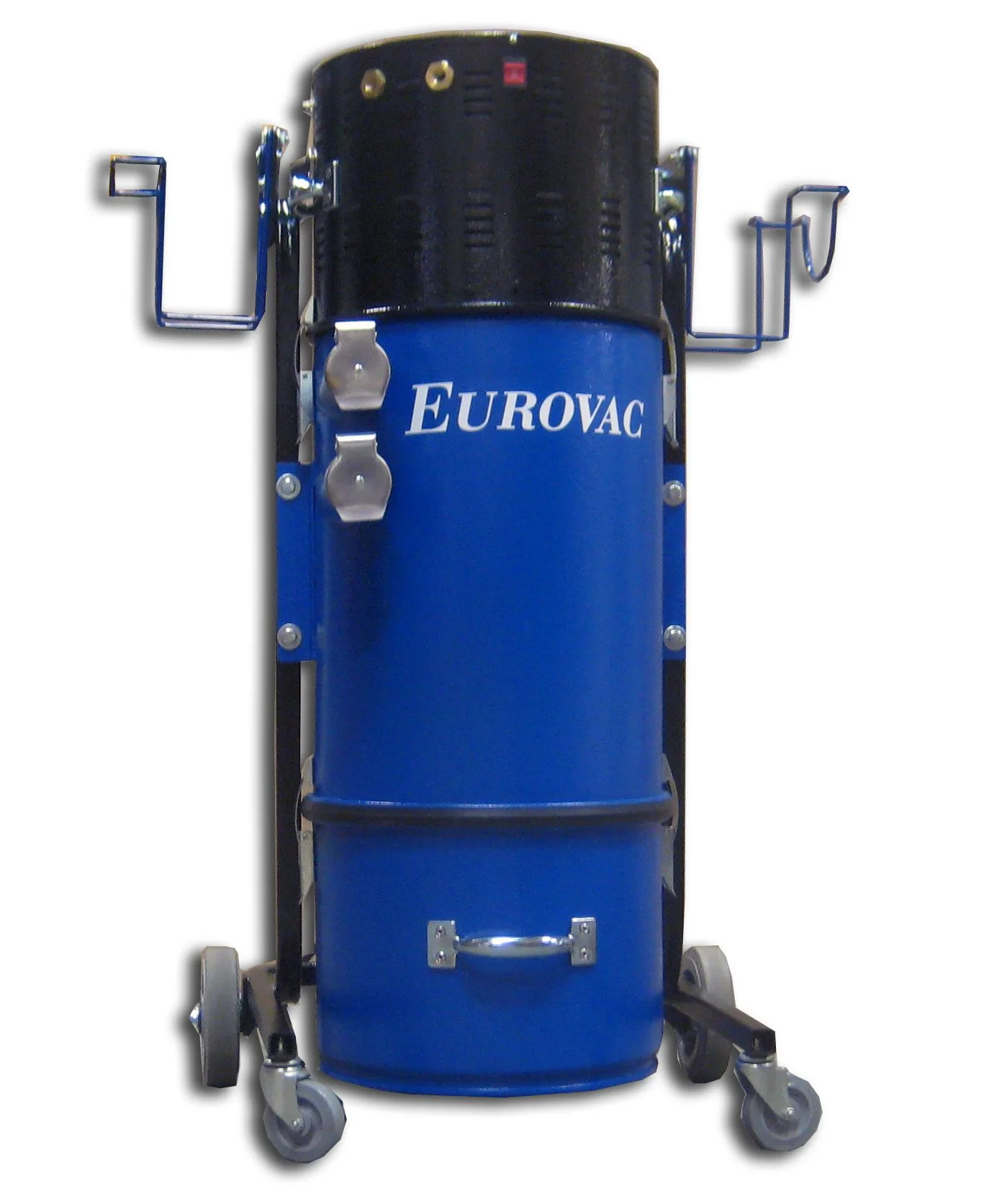

Eurovac offers a wide range of portables for capturing dust at the source starting with a 1 to 2 technician 2.5HP portable up to a 20HP portable with 5 vacuum inlets. Portables are offered with a wide range of beneficial features to choice from such as different canister sizes, filter cleaning, bag equalization, speed control and more.
Read More -
D

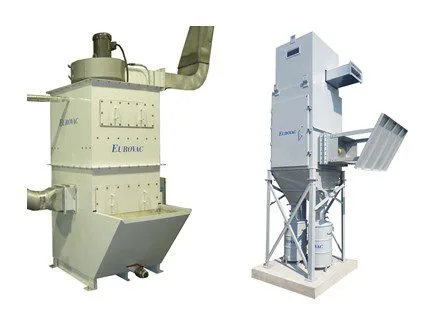

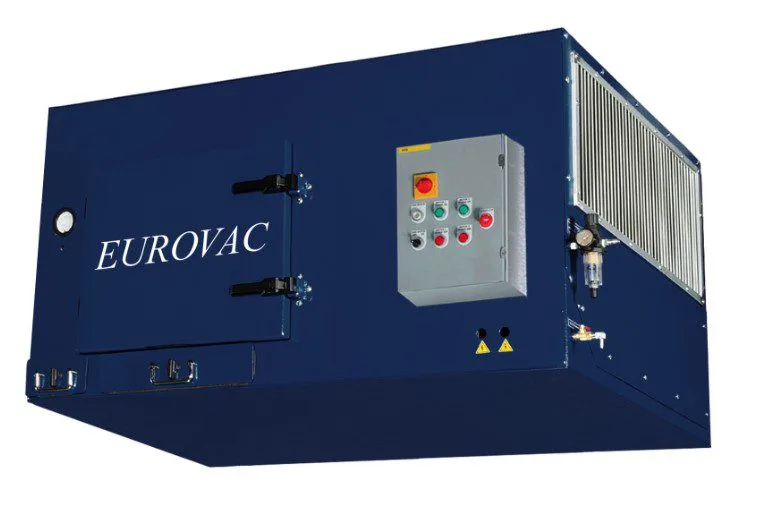

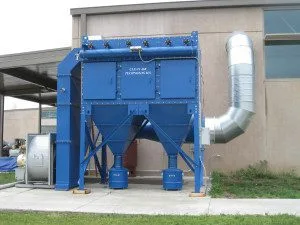

Cartridge Dust Collectors

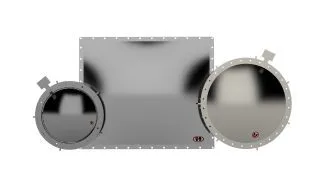

Unlike many equipment manufacturers who are limited to only one or two types of dust collectors, Eurovac offers a wide variety of systems ranging from highly efficient vertical cartridges arrangement to integrated cyclonic separators when large amounts of dust are present in the air stream. The fully automated control panels ensure that minimal maintenance will be required. If no toxic fumes are generated in the process, it is possible to recycle clean air back in the facility. Depending on the nature of the dust or smoke, Eurovac will select certified high efficiency pleated filters or bags. The vessel robust steel construction may be equipped with NFPA safety features such as explosion vents or suppression devices. Our engineering staff will recommend energy conscious owners and plant managers the use of a variable frequency drive (VFD) if not all work stations are required to operate simultaneously.
Read More -
E
Downdraft Tables (Dry)

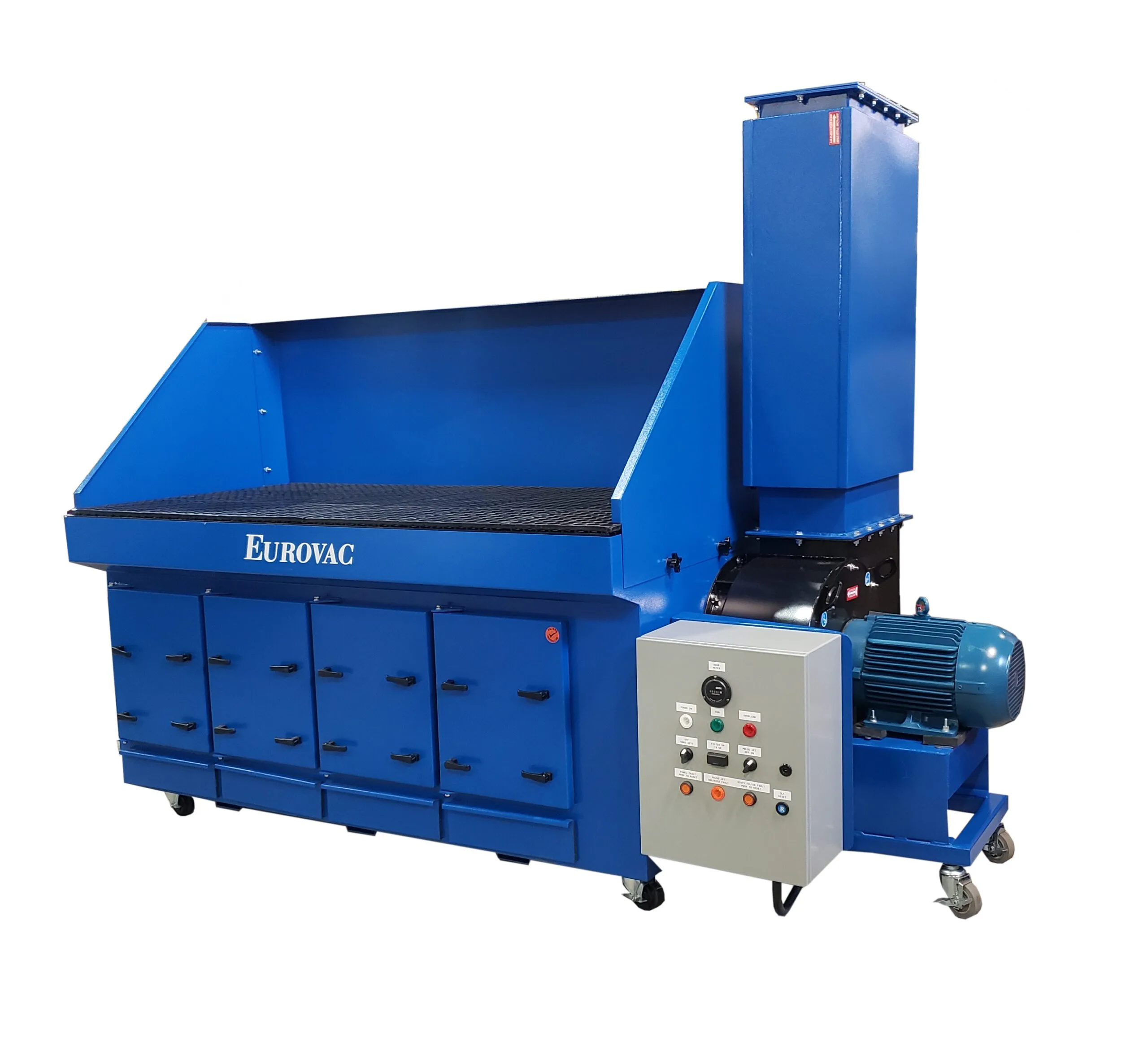

Eurovac’s line of Downdraft tables,Downdraft Sanding Tables & Down Draft Benches offer a “Hands Free Method of Capture at Source” of Fumes and Dust. Tables are available with working surfaces from 2 1/2’ x 2 1/2’ to 4’ x 8’, and are available with automatic self cleaning filters. Typical applications include welding smoke, metal grinding and deburring, dust collection from plastics, composite and wood materials, odor control from gluing and painting, plasma cutting, batching & weighing, soldering, as well as finishing processes (i.e. buffing and polishing). All tables comply with local and federal clean air requirements.
Read More
Industrial Dust Extraction (Aerospace, Composite, Etc) Products
ACentral Vacuum Systems (Industrial)
We’re the central vacuum specialists with products for every need and budget. Eurovac offers industrial grade vacuum producers and superior filtration which will ensure your system runs at a high vacuum level all day, every day with minimal maintenance requirements. We are here to assist with every step of the process from the initial engineered layout design all the way to the final installation and commissioning.
DetailsBIndustrial - Drops, Pipe & Fittings
Eurovac systems are designed for convenient use with vacuum drops hanging (2” vacuum hose attached to pipe overhead) or wall/pillar mounted (2” pipe running down the wall) close to the operators work station. If a technician is working with pneumatic tools, the vacuum drops typically get run in conjunction with the compressed air so the air and vacuum are working together. Systems will be designed with 2” tubing at the drops and graduating up to 8” (depending on system size) back at the central equipment which delivers a typical air speed of 4,500 feet per minute. Galvanized steel tube, bends and fittings are used to ensure system is grounded thus avoiding static electricity build up and potential shocks. As well, galvanized bends and fittings come standard with long radius sweeps which ensure your system is operating at its peak vacuum level.
DetailsCPortable Vacuums - Sanding & Grinding
Eurovac offers a wide range of portables for capturing dust at the source starting with a 1 to 2 technician 2.5HP portable up to a 20HP portable with 5 vacuum inlets. Portables are offered with a wide range of beneficial features to choice from such as different canister sizes, filter cleaning, bag equalization, speed control and more.
DetailsDCartridge Dust Collectors
Unlike many equipment manufacturers who are limited to only one or two types of dust collectors, Eurovac offers a wide variety of systems ranging from highly efficient vertical cartridges arrangement to integrated cyclonic separators when large amounts of dust are present in the air stream. The fully automated control panels ensure that minimal maintenance will be required. If no toxic fumes are generated in the process, it is possible to recycle clean air back in the facility. Depending on the nature of the dust or smoke, Eurovac will select certified high efficiency pleated filters or bags. The vessel robust steel construction may be equipped with NFPA safety features such as explosion vents or suppression devices. Our engineering staff will recommend energy conscious owners and plant managers the use of a variable frequency drive (VFD) if not all work stations are required to operate simultaneously.
DetailsEDowndraft Tables (Dry)
Eurovac’s line of Downdraft tables,Downdraft Sanding Tables & Down Draft Benches offer a “Hands Free Method of Capture at Source” of Fumes and Dust. Tables are available with working surfaces from 2 1/2’ x 2 1/2’ to 4’ x 8’, and are available with automatic self cleaning filters. Typical applications include welding smoke, metal grinding and deburring, dust collection from plastics, composite and wood materials, odor control from gluing and painting, plasma cutting, batching & weighing, soldering, as well as finishing processes (i.e. buffing and polishing). All tables comply with local and federal clean air requirements.
