Eurovac Products

Eurovac Wet Mix Dust Collectors with Drain Valve collection provides a simple clean method for particulate removal as gravity feeds particulate to a open/close ball valve.

Part Numbers:

• SYS-BMW-B0040002:  2HP Wet Mix Collector w/ Drain Valve (400 CFM Application)
• SYS-BMW-B0060003:  3HP Wet Mix Collector w/ Drain Valve (600 CFM Application)
• SYS-BMW-B01000005:  5HP Wet Mix Collector w/ Drain Valve (1000 CFM Application)
• SYS-BMW-B01500007:  7.5HP Wet Mix Collector w/ Drain Valve (1500 CFM Application)
• SYS-BMW-B0200010:  10HP Wet Mix Collector w/ Drain Valve (2000 CFM Application)
• SYS-BMW-B0400015:  15HP Wet Mix Collector w/ Drain Valve (4000 CFM Application)
• SYS-BMW-B0500020:  20HP Wet Mix Collector w/ Drain Valve (5000 CFM Application)
• SYS-BMW-B0600025:  25HP Wet Mix Collector w/ Drain Valve (6000 CFM Application)
• SYS-BMW-B0800030:  30HP Wet Mix Collector w/ Drain Valve (8000 CFM Application)
• SYS-BMW-B1000040:  40HP Wet Mix Collector w/ Drain Valve (10000 CFM Application)
• SYS-BMW-B1200050:  50HP Wet Mix Collector w/ Drain Valve (12000 CFM Application)
• SYS-BMW-A1400075:  75HP Wet Mix Collector w/ Drain Valve (14000 CFM Application)

Equipment Specs:

• Construction/Finish:  Carbon steel which is epoxy powder coat painted and treated with zinc oxide and rust inhibitor zinc primed and final powder coat finish
• Filtration:  Initial venturi entry for deep penetration into the water, secondary baffles to completely mix the dust particulate with the water and final stainless steel mesh descicant mist eliminator(s) (99% efficient at 10 micron)
• Level Sensor: Automatic level control via an ultra sonic probe situated in a reservoir of “quiet” water

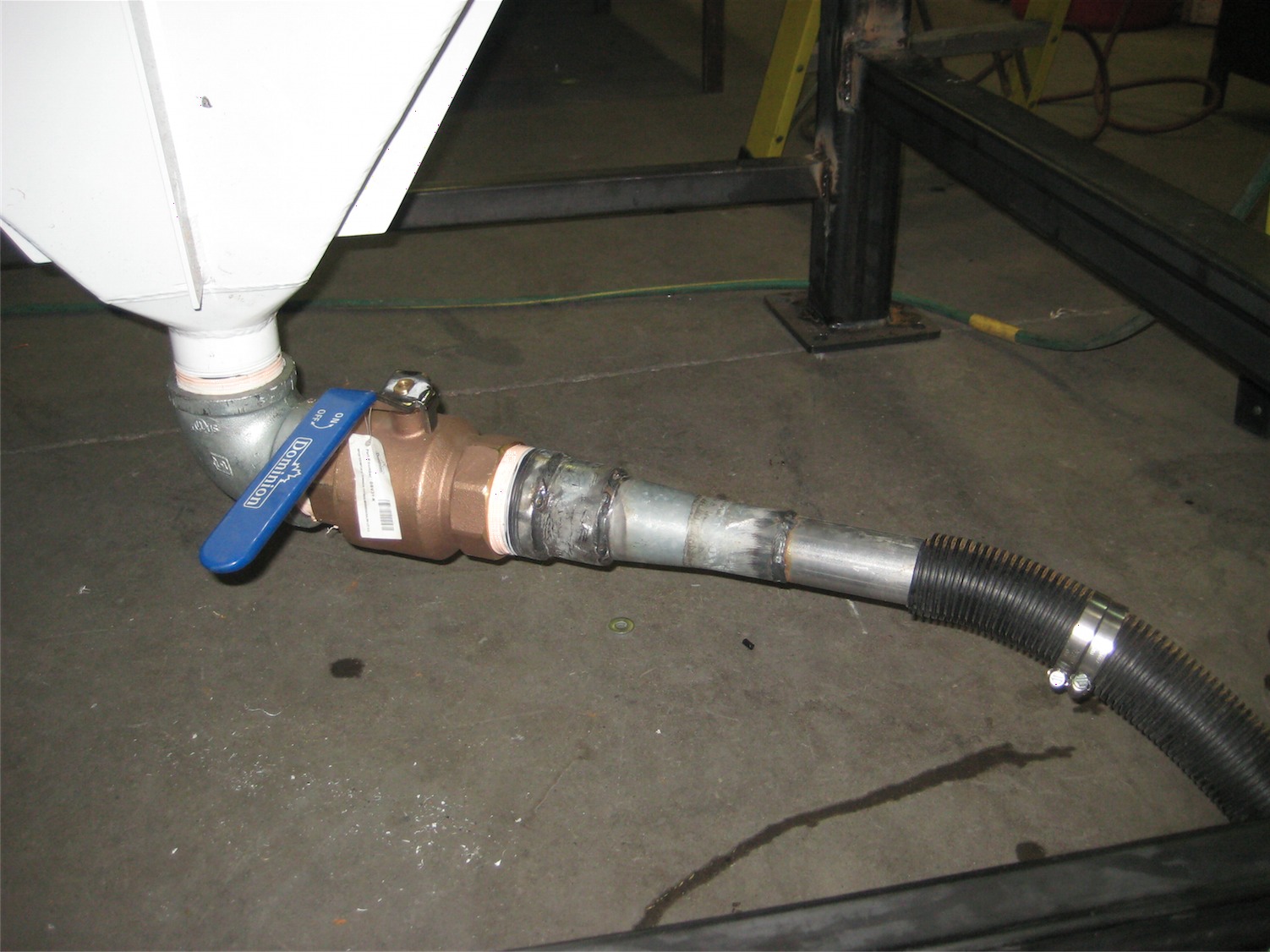

• Particulate Removal: Manual drain valve at bottom of separator
• Electrical:  208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor

PLC Control Panel Specs:

• NEMA 4 Enclosure (Indoor/Outdoor)
• Start/Stop
• Overload Protection
• Run Light
• Hour Meter
• 120v Step Down Transformer (ie: Control remote on/off switches)
• Automatic Water Fill
• Low or High Water Automatic Shut Off
• Provisions for venting gasses
• Fault Log
• Manual Control for diagnostic purposes
• Input and Output Status screens
• System Parameter Adjustments
• Fan Pressure and Amperage Monitor
• Differential Pressure Monitor
• User programmable run timer

Includes:

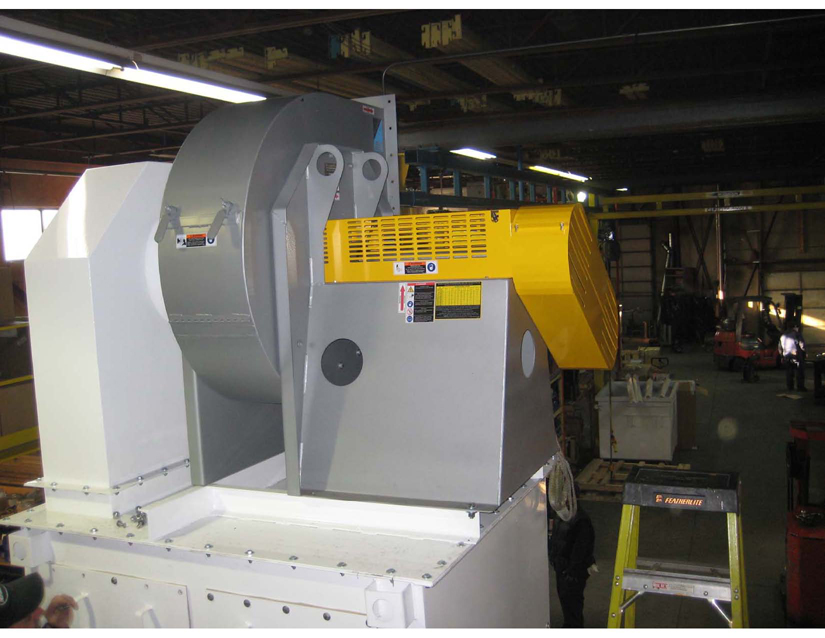

• Backward Incline Fan with Aluminum Impeller

Not Included:

• Electrical Disconnect

Optional Additions:

• Stainless Steel Construction
• Hydrogen Relief Vent (For aluminum applications)
• 2 Micron Mist Eliminator
• Inlet Entry Spray Nozzles (Helps “knock down” fine particulate)
• Upgrade from Manual to Automatic Drain Valve for particulate removal

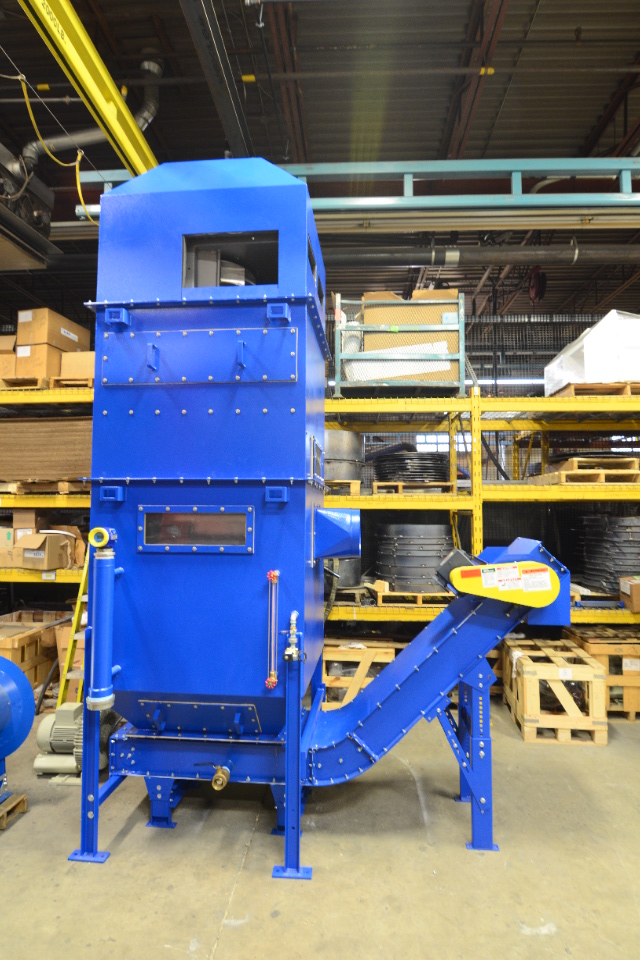

• Upgrade from Manual Drain Valve to Conveyor for particulate removal
