Eurovac Products

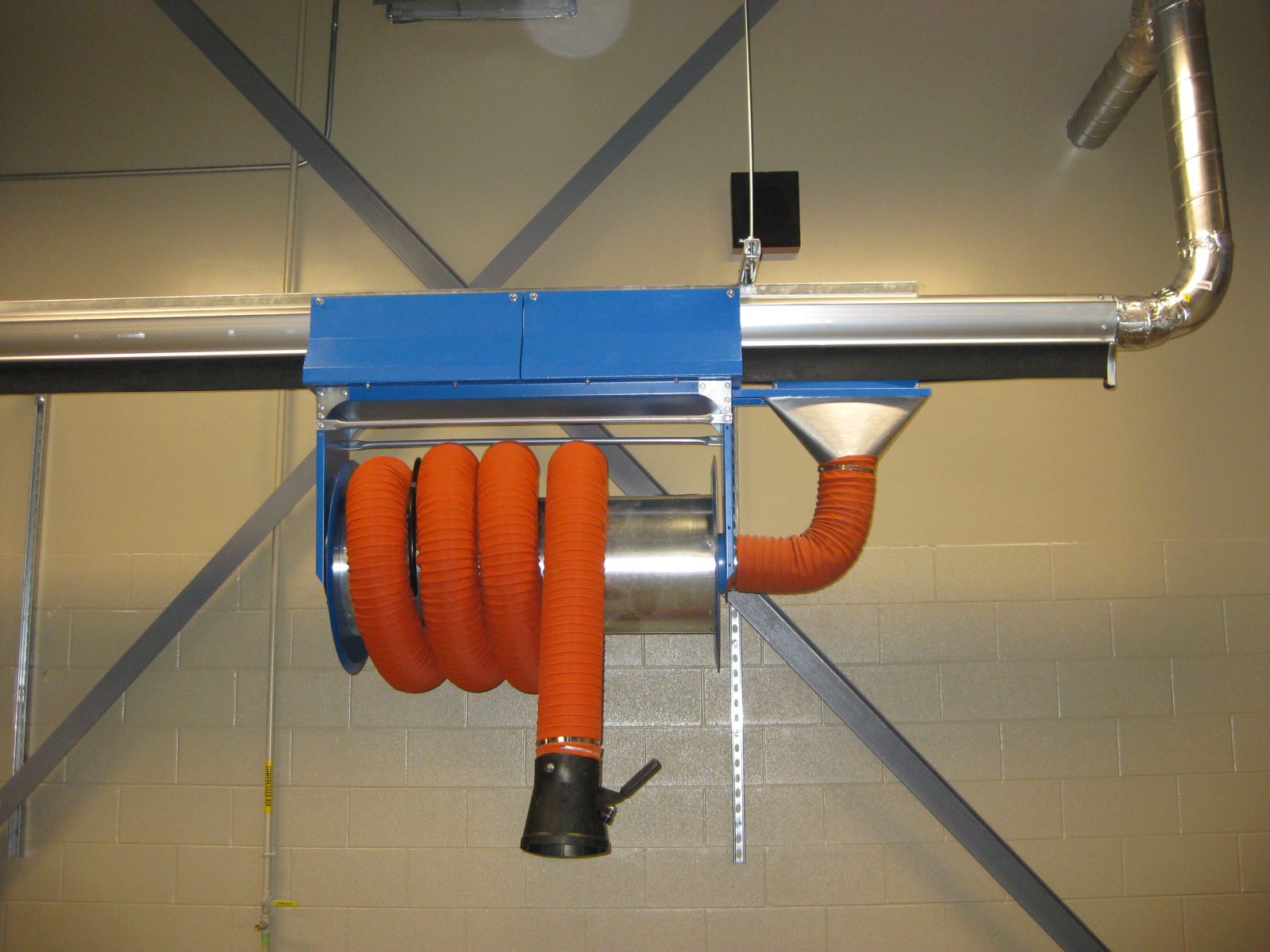

Sliding Spring Return Hose Reels have up to 33’ hose capacity which allows for good service bay coverage.  When the exhaust process is complete, a quick tug on the hose activates the recoiling action onto the reel, keeping the bay area clean and ready for the next service job.

Part Numbers:

• SYS-VEH-T4RC0425-1:  4” x 25’ 350 Deg F Hose Sliding Reel
• SYS-VEH-T4RC0433-1:  4” x 33’ 350 Deg F Hose Sliding Reel
• SYS-VEH-T6RC0625-2:  6” x 25’ 700 Deg F Hose Sliding Reel
• SYS-VEH-T6RC0633-2:  6” x 33’ 700 Deg F Hose Sliding Reel

Equipment Specs:

• Construction:  Fully welded steel construction
• Finished:  Texture Blue powder coated painted finish
• Spring Pack: Heavy duty spring system for recoiling 33’ of hose at temperatures higher than 700 degrees (hose gets heavier with temperature rating)
• Wheels: Top rail mounted wheels allow for easy travel up and down the rail system with under guiding wheels for added stability
• Outlet:  6” Reel Outlet is designed to knife an opening in the sealed rail rubber as it slides along the rail ensuring suction is only available where needed

Includes:

• Hose Stop to ensure hose only gets rewound to a pre-determined length
• Pull Cable with grab handle to help guide the sliding reel up and down the rail line

Optional Additions:

• Hoses with temperature ratings up to 2000 Deg F depending on the exhaust requirements of the vehicle in use
• Automatic Open/Close Reel Mounted Damper
• Tail Pipe Adaptors
