Eurovac Products

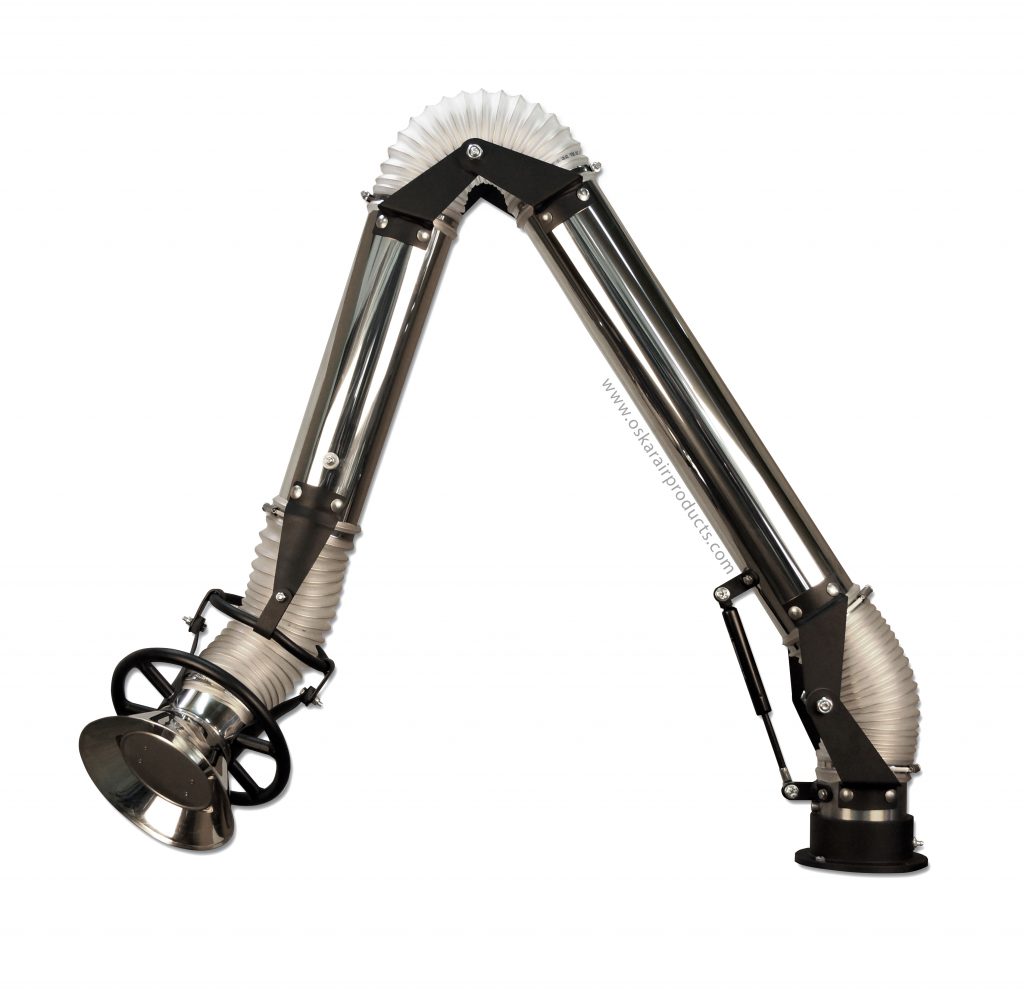

Fume Extraction Arms – Bench Mount (Stainless Steel)

Part Numbers:

  • SYS-WEL-B030306S:  3” x 1m (3.28’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B030506S:  3” x 1.5m (4.92’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B040506S:  4” x 1.5m (4.92’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B040706S:  4” x 2m (6.56’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B040806S:  4” x 2.5m (8.2’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B050710S:  5” x 2m (6.56’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B051011S:  5” x 3m (9.84’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B051410S:  5” x 4m (13.12’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B060710S:  6” x 2m (6.56’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B061011S:  6” x 3m (9.84’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B061410S:  6” x 4m (13.12’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B080710S:  8” x 2m (6.56’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B081011S:  8” x 3m (9.84’) Stainless Steel Standing Fume Arm
  • SYS-WEL-B081410S:  8” x 4m (13.12’) Stainless Steel Standing Fume Arm

Equipment Specs:

  • Hoods (304 Stainless Steel): :  3” Arms: 6” Hoods,  4” Arms: 8” Hoods,  5” Arms: 10” Hoods,  6” Arms: 12” Hoods,  8” Arms: 14” Hoods
  • Handles (304 Stainless Steel): :  “Grab” handle all around the hood and second handle for rotation on the tube
  • Diverter (304 Stainless Steel): : Air diverter in hood to increase capture velocity
  • Swivel Base (304 Stainless Steel): : Heavy duty 360 degree swivel base with safety stop
  • Joints (Cast Aluminum):  Exterior cast joints for easy access with adjustable pressure friction discs
  • Tubes (304 Stainless Steel): :  Smooth tube construction for lowest pressure drop.   Food Grade (FDA) Clear Hose for connection from tube to tube.
  • Spring: Totally encapsulated lift assist spring
  • Damper (304 Stainless Steel): :  Built-in shut off damper in every arm

Optional Additions:

  • Outside Joints upgraded to Anodized Aluminum
  • Screen For Fume Hoods (304 Stainless Steel)
  • Hood Size Upgrade (ie: 6” Arm:  14” Hood increases to 20” Hood)
  • Fan On/Off Kit:  Hood mounted Fan On/Off Switch and 7 meters of low voltage wire
  • LED Light Kit:  Hood mounted LED Light (12V 35 Watt) with On/Off Switch and 7 meters of low voltage wire
Email us for a quote
