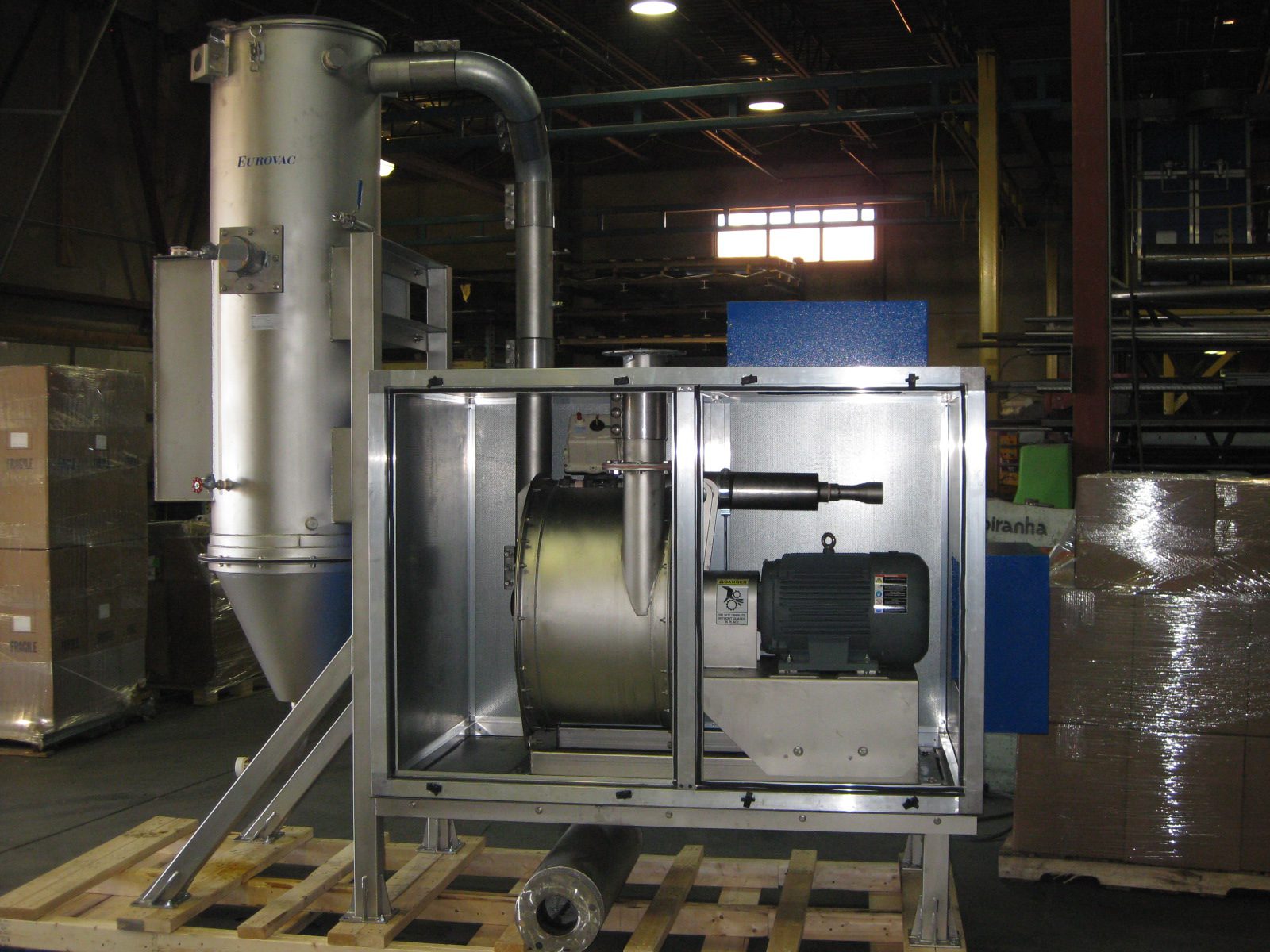

EIII – 10HP to 75HP Central High Vacuum Wet Mix Collectors

Application:

  • 3 to 23 Tech Housekeeping Wet Mix Vacuum System
  • 3 to 23 Tech Grinder Wet Mix Vacuum System
  • 6 to 38 Tech Orbital Sander Wet Mix Vacuum System

Part Numbers:

  • SYS-10S-6024WS0B:  10HP System
  • SYS-15S-6024WS0B:  15HP System
  • SYS-20S-6524WS0B:  20HP System
  • SYS-25S-6530WS0B:  25HP System
  • SYS-30S-7030WS0B:  30HP System
  • SYS-40S-7033WS0B:  40HP System
  • SYS-50S-7538WS0B:  50HP System
  • SYS-60S-7538WS0B:  60HP System
  • SYS-75S-7554WS0B:  75HP System

Equipment Specs:

  • Construction/Finish:  Carbon steel which is epoxy powder coat painted and treated with zinc oxide and rust inhibitor zinc primed and final powder coat finish
  • Blower:  Centrifugal Multi-Stage Turbine Blower (energy efficient and rated for 20,000 hours of continuous operation)
  • Filtration:  24” to 54” Round Wet Mix Separator with initial venturi entry for deep penetration into the water, secondary baffles to completely mix the dust particulate with the water and final stainless steel mesh descicant mist eliminator(s) (99% efficient at 5 micron)
  • Water Level Indicator: Automatic level control via an ultra sonic probe situated in a reservoir of “quiet” water
  • Relief Valve: Valve automatically opens when system is shut off to exhaust hydrogen gas build-up in an aluminum application
  • Particulate Removal: Ball valve for removing the sludge
  • Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor
  • Blower Relief: Manual ball valve for ensuring blower does not go into “surge”
  • Inlet:  4″OD to 8”OD

PLC Control Panel Specs:

  • NEMA 4 Enclosure (Indoor/Outdoor)
  • Start/Stop
  • Overload Protection
  • Run Light
  • Hour Meter
  • 120v Step Down Transformer (ie: Control remote on/off switches)
  • Automatic Water Fill
  • Low or High Water Automatic Shut Off
  • Provisions for venting gasses
  • Fault Log
  • Manual Control for diagnostic purposes
  • Input and Output Status screens
  • System Parameter Adjustments
  • Fan Pressure and Amperage Monitor
  • Differential Pressure Monitor
  • User programmable run timer

System Performance:

  • Vacuum – 6”Hg (81.6″WC) to 8”Hg (108.8”WC)
  • Flow – 300 CFM to 1900 CFM

Includes:

  • Silencer, 4 Anti Vibration Pads & Wedge Anchors
  • Tube, Bends & Fittings Between Blower & Separator

Not Included:

  • Electrical Disconnect

Optional Additions:

  • Stainless Steel Construction
  • Hydrogen Relief Vent (For aluminum applications)
  • 2 Micron Mist Eliminator
