Eurovac Products

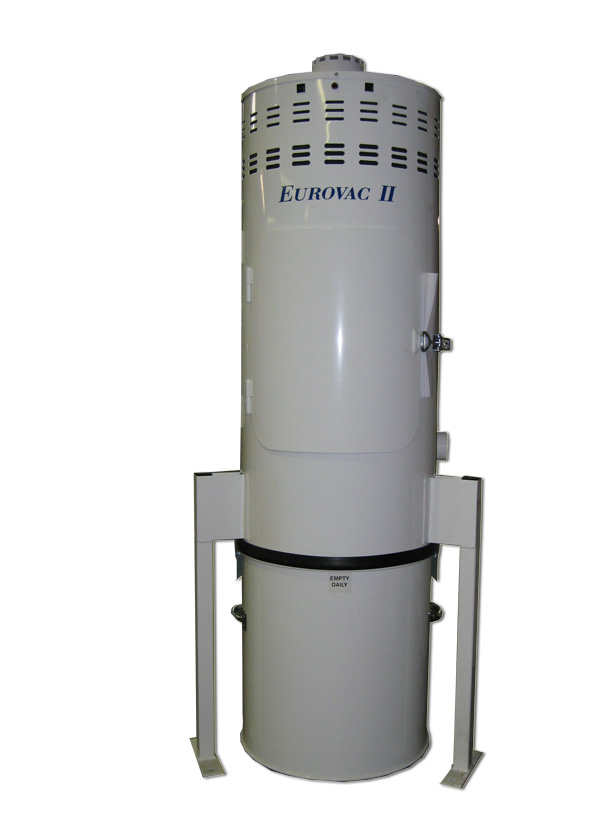

The EII 2.5HP Central Detail Vacuum System offers high vacuum performance for one technician vacuuming.  The system is typically used for one detail bay with a drop at each car door and a longest run of no more than 100’.

Application:

• 1 Tech Detail Vacuum System

Part Number:

• SYS-050-164BS0L0

Equipment Specs:

• Construction:  Fully welded steel construction
• Finish:  White powder coated painted finish
• Blower:  2.5HP Brush Motor (4000 Hrs Intermittent Duty) – 1549 watt motor
• Filtration: 18″ Cyclonic filter separator with final 4 bag filters
• Canister: 10 Gal plastic tote canister
• Controls (On/Off/Auto Switch):  Set to Auto for wiring (24v) to Remote Start Switches.  Controls include Automatic Shut Down After Set Period of Time (Auto shut down is adjustable from 1 to 30 minute’s)
• Electrical: 115/1/60 – 13.9 amp (US / Canada) 15amp Circuit Req’d. Includes 12′ Electrical Cord
•  Inlet:  2″OD
• Unit on Legs: (Wall mount version available upon request)
• Dba:  70 @ 3M
• Weight: 125 lbs

System Performance:

• Vacuum – 146.6″WC
• Flow – 141.5 CFM

Optional Additions:

• System wall mount bracket (SYS-050-164BS000)
• 2.5HP Brushless Motor (20,000 Hrs Continuous Use) – 20 Amp Circuit Required.  Vacuum – 105″WC / Flow – 120 CFM
• Blue Plastic Dome Lid For EII Central Systems.  Highly recommended for wet areas
