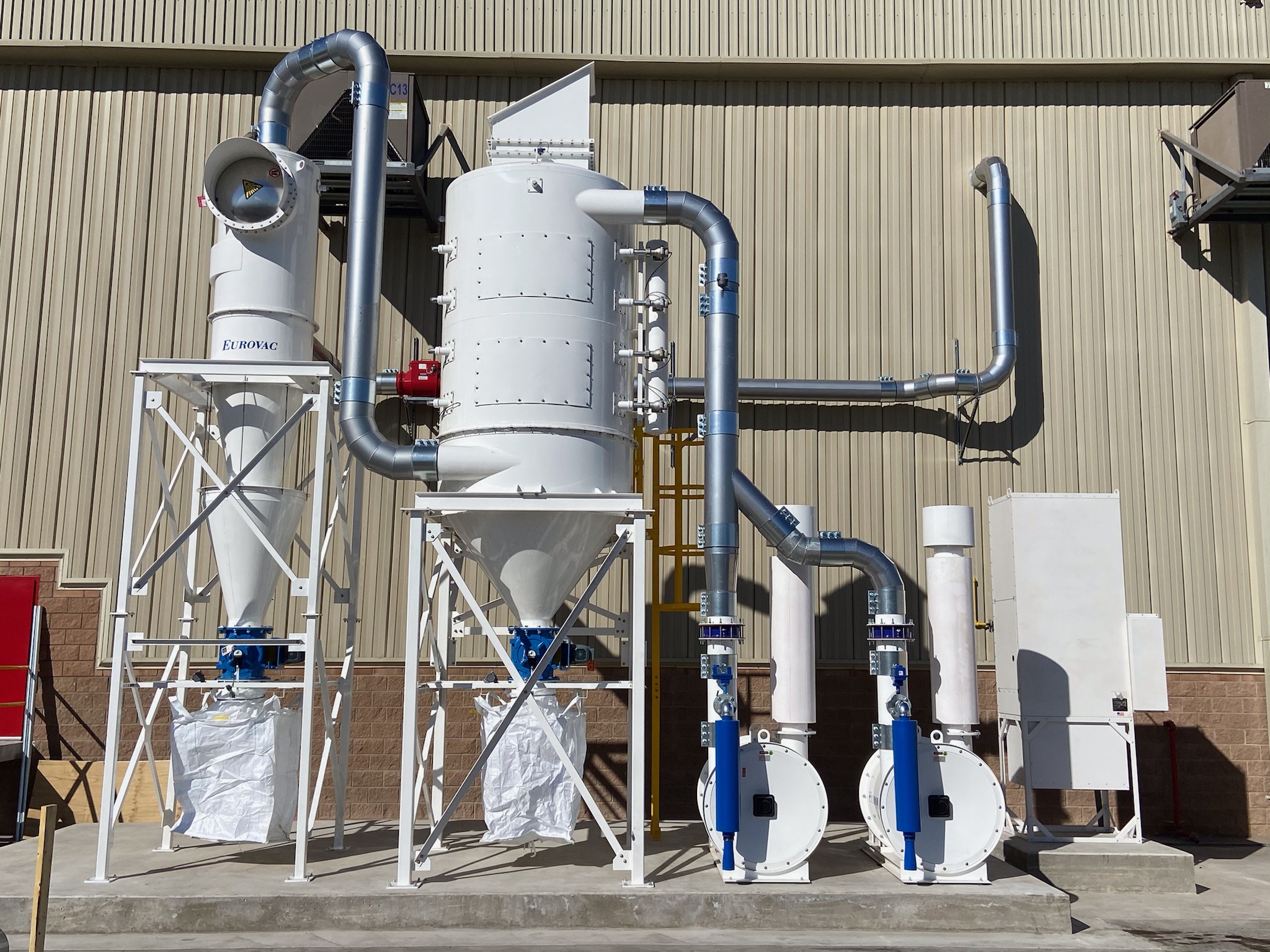

The EIII Central Industrial Vacuum System offers high vacuum performance for up to 30+ technicians operating at the same time.  The system is typically connected with galvanized tubing to conveniently located wall or hanging drops with a longest run of no more than 250’.

Application:

• 6 to 50 Tech Housekeeping Vacuum System
• 6 to 50 Tech Grinder Vacuum System
• 10 to 75 Tech Orbital Sander Vacuum System

Part Numbers:

• SYS-102-6530FS2B:  Double 10HP System
• SYS-152-6038FS4B:  Double 15HP System
• SYS-202-6038FS4B:  Double 20HP System
• SYS-252-6042FS6B:  Double 25HP System
• SYS-302-6048FS6B:  Double 30HP System
• SYS-402-6054FS9B:  Double 40HP System
• SYS-502-6566FS9B:  Double 50HP System
• SYS-602-6566FS9B:  Double 60HP System
• SYS-752-7572FS9B:  Double 75HP System

Equipment Specs:

• Construction:  Fully welded steel construction
• Finish:  White powder coated painted finish
• Blower:  QTY 2 – Centrifugal Multi-Stage Turbine Blower (energy efficient and rated for 20,000 hours of continuous operation)
• Filtration: 24” to 72” Cyclonic filter separator, after polyester cartridge filters (99.93% at 3 microns or larger) and final automatic pulse jet cleaning
• Canister: 30 to 55 Gallon
• Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor
• Blower Relief: Manual ball valve for ensuring blower does not go into “surge”
• Inlet:  4″OD to 14”OD

Control Panel Specs:

• NEMA 4 Enclosure (Indoor/Outdoor)
• Start/Stop
• Overload Protection
• Run Light
• 120v Step Down Transformer (ie: Control remote on/off switches)
• 24VDC Sequential On Demand Auto Pulse Jet. Includes Proportional Type “On Line” Cleaning, “Off Line” Cleaning
• Filter Differential Pressure (dp) Display
• Dirty Filter Fault Shutdown/Light (c/w external reset)
• General Pulse Jet Fault Light

System Performance:

• Vacuum – 6”Hg (81.6″WC) to 8”Hg (108.8”WC)
• Flow – 600 CFM to 3800 CFM

Includes:

• Silencer, 4 Anti Vibration Pads & Wedge Anchors
• Tube, Bends & Fittings Between Blowers & Separator
• Air Filter Regulator (For Pulse Jet Cleaning)

Not Included:

• Electrical Disconnect

Optional Additions:

• Controls:  For double turbine systems, a lead/lag control system should be considered as it allows one turbine to start operation and the other to kick in when additional demand is required.
• Check Valves: QTY 2 – Check valves which allow each turbine to be isolated where by only vacuum is produced if that specific turbine is operating
• 600CFM Max HEPA Filtration (HEP-R18-1B0600RP)
• 900CFM Max HEPA Filtration (HEP-R24-1B0900RP)
• 1600CFM Max HEPA Filtration (HEP-R24-2B1600RP)
• 2400CFM Max HEPA Filtration (HEP-R24-3B2400RP)
• 3000CFM Max HEPA Filtration (HEP-R24-4B3000RP)
• 3800CFM Max HEPA Filtration (HEP-R30-4B3800RP)
• See Separator Options for Explosion Relief, Rotary Air Locks and more
