Eurovac Products

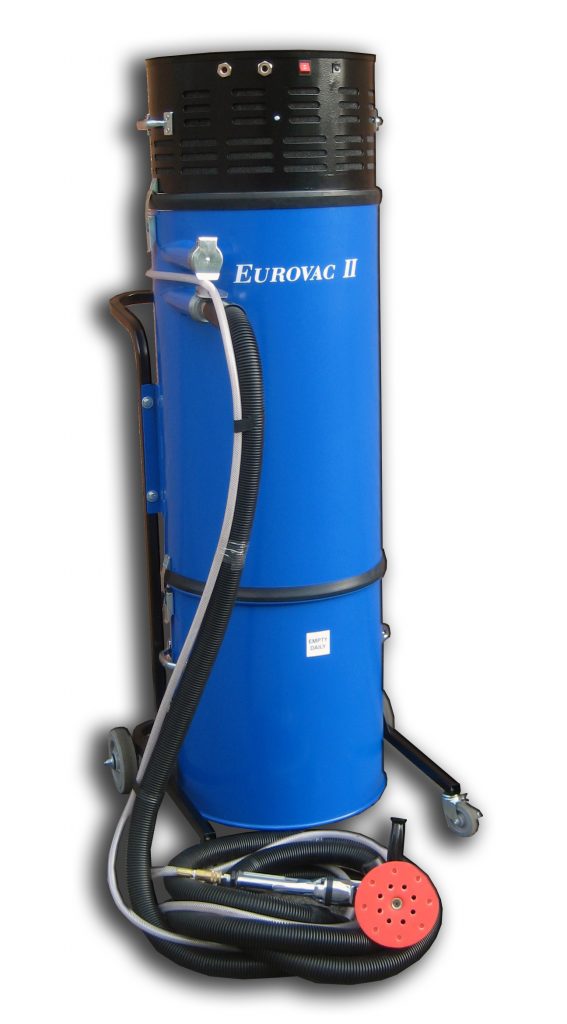

The EII 4.6HP Grinding Portable is designed for the most demanding dust extraction operations with 1 to 2 technicians using source capture tools at the same time.  In particular, it has the suction capacity needed to capture dust from two high RPM Rotary Grinders.  The Grinding Portable can also be utilized for housekeeping to assist in maintaining a clean shop.

Application:

• 1 to 2 Tech Grinder Vacuum System

Part Number:

• POR-P46-B02R0520

Equipment Specs:

• Construction:  Fully welded steel construction
• Finish:  Texture Blue powder coated painted finish
• Blower:  QTY 2 – 2.3HP Brush Motors (4000 Hrs Intermittent Duty) – 1300 watt motors
• Filtration: Cyclonic Filter Separator & Final Polyester Cartridge Filter (99.93% at 3 microns or larger). Includes Manual Pulse Back Flap for Filter Cleaning
• Controls (On/Off/Auto Switch):  Auto position will start and stop portable based on if pneumatic or electric tool is in operation
• Electrical: 1 Phase 60 Hertz 220/120 (4 wire: 2 Hot, 1 Neutral & 1 Ground). NEMA #L1420P plug provided• Canister: 20 Gallon
• Inlet:  Qty 2: 1-1/2″ Inlets

System Performance:

• Vacuum – 137″WC
• Flow – 224 CFM

Includes:

• Qty 1 – 1-1/2″ x 20′ Hoses w/ Airline
• Qty 2 – Hose Hangers

Optional Additions:

• 1-1/4” Hoses w/ Airline (For 4” to 5” Grinding Tool Application)
