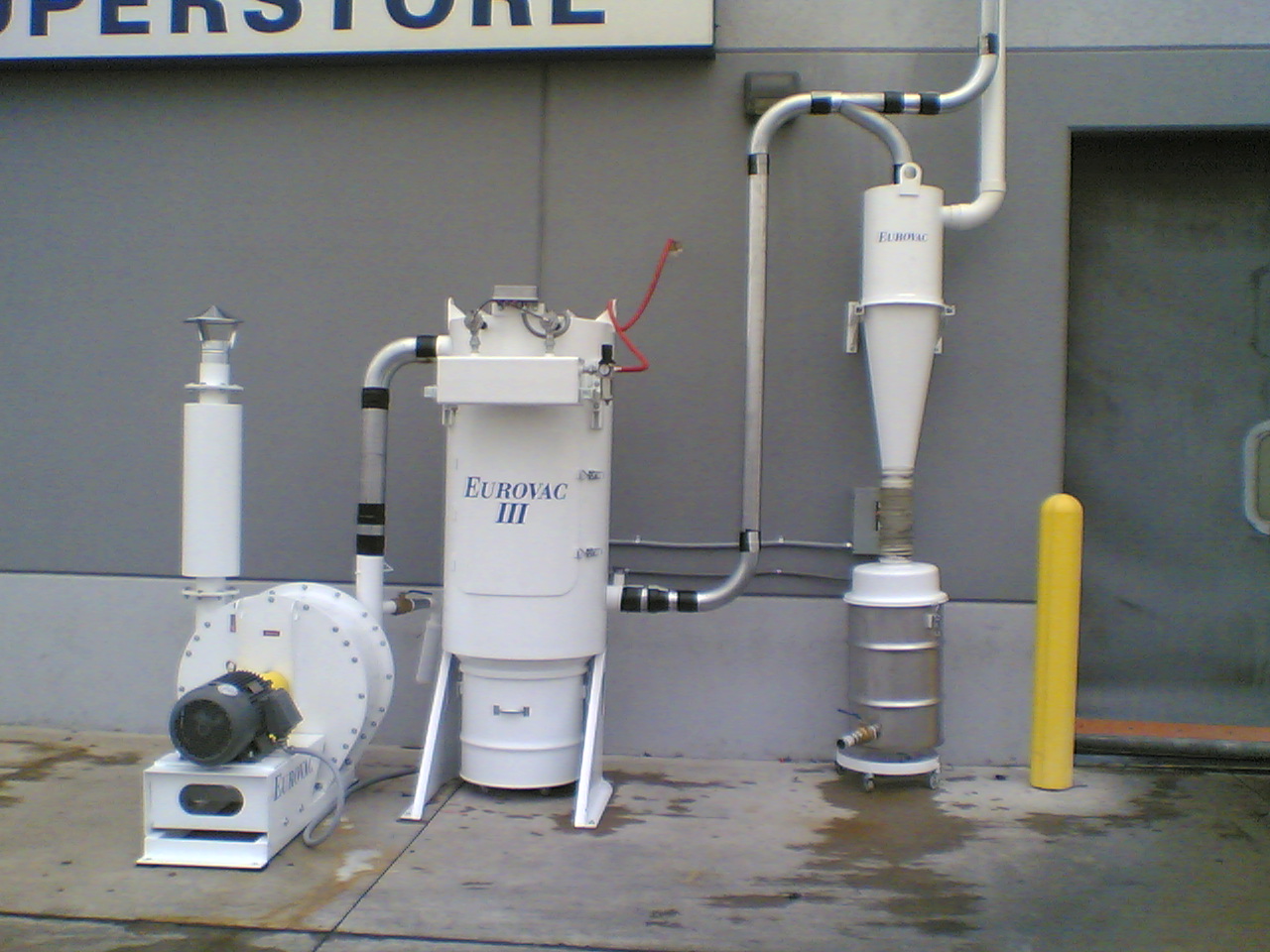

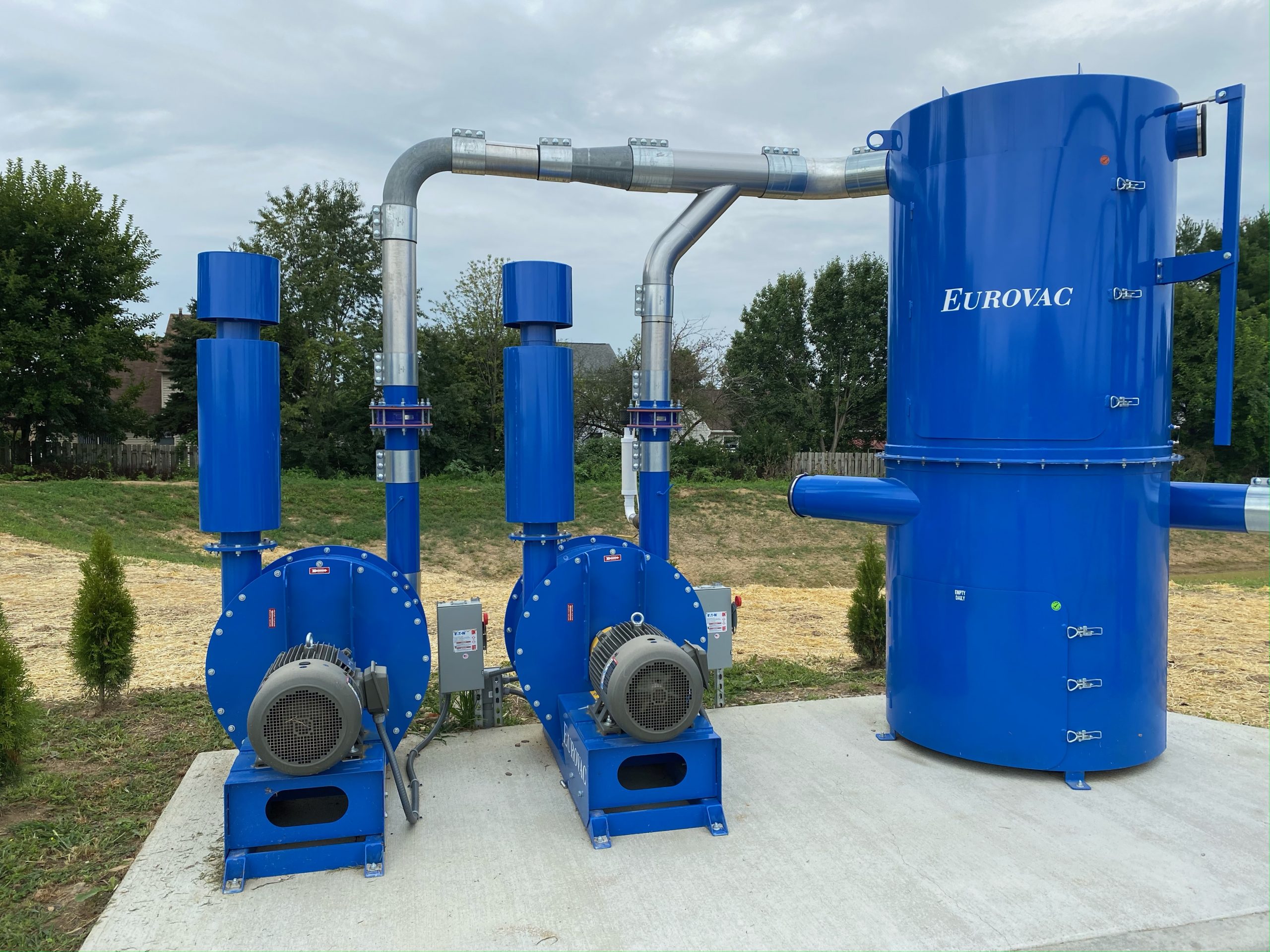

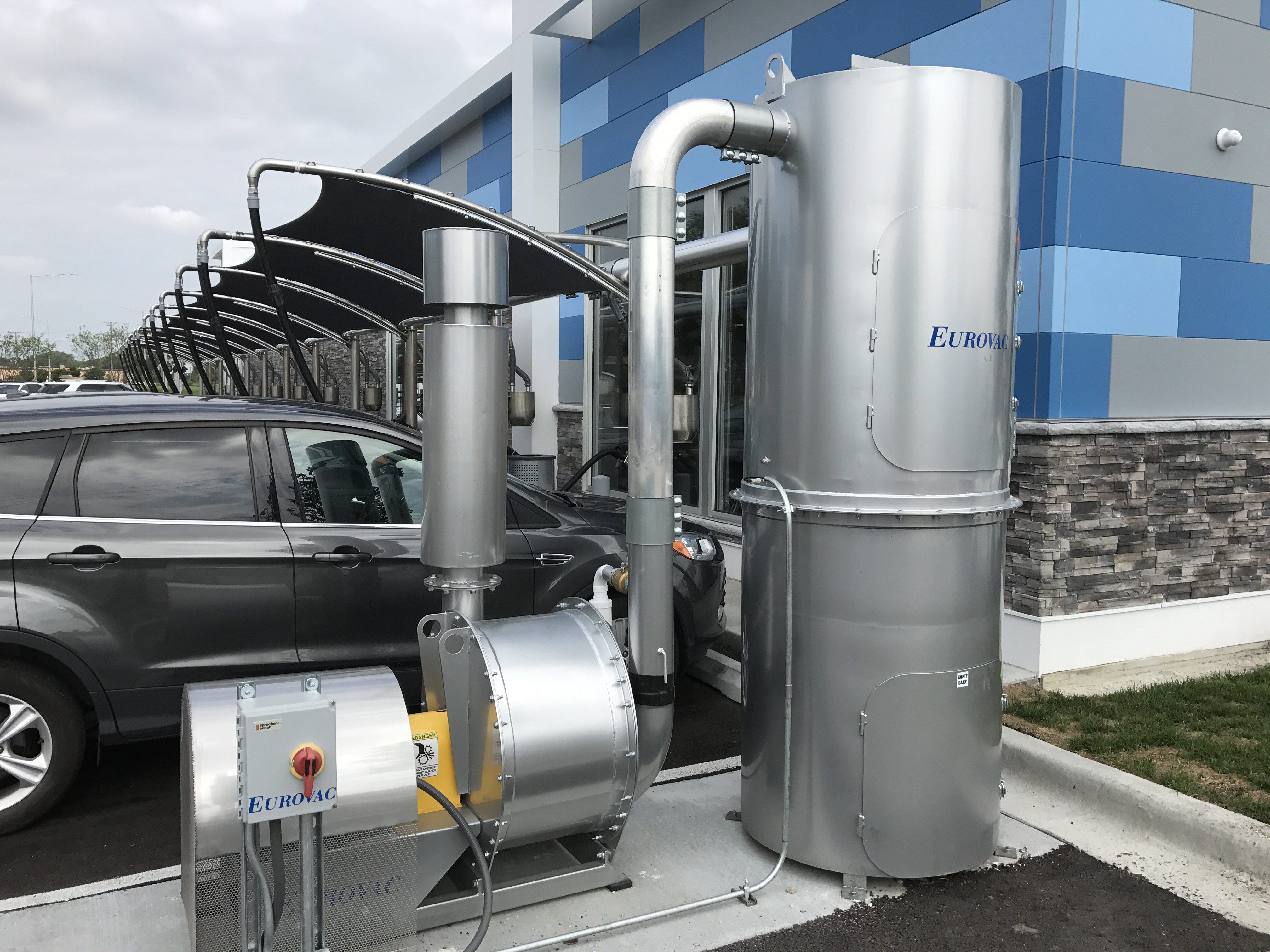

EIII Central Detail Vacuum Systems have horse powers suited for up to 25 technicians vacuuming at the same time.  EIII Systems are typically used for three to fifteen detail bays with a drop at each car door and a longest run of up to 250’.  The EIII Central Vacuum is an industrial grade system designed to run all day, every day in the most demanding detail operations.

Application:

• 3 to 25 Tech Detail Vacuum System

Part Numbers:

• SYS-10C-6030BS0B:  10HP System
• SYS-15C-6530BS0B:  15HP System
• SYS-20C-6530BS0B:  20HP System
• SYS-25C-6534BS0B:  25HP System
• SYS-30C-7038BS0B:  30HP System
• SYS-40C-7038BS0B:  40HP System
• SYS-50C-7542BS0B:  50HP System
• SYS-60C-7548BS0B:  60HP System
• SYS-75C-7554BS0B:  75HP System

Equipment Specs:

• Construction:  Fully welded steel construction
• Finish:  White powder coated painted finish
• Blower:  Centrifugal Multi-Stage Turbine Blower (energy efficient and rated for 20,000 hours of continuous operation)
• Filtration: 30” to 54” Cyclonic filter separator with after bag filters
• Canister: 26 to 45 Gal plastic tote canister
• Electrical: 208-240, 460 and 575 volts. 3 phase, 60 hertz Premium Efficiency TEFC Motor
• Blower Relief: Manual ball valve for ensuring blower does not go into “surge”
• Inlet:  4″OD to 8”OD

System Performance:

• Vacuum – 6”Hg (81.6″WC) to 8”Hg (108.8”WC)
• Flow – 300 CFM to 1900 CFM

Optional Additions:

• Controls:  A wide variety of control options are available for EIII Systems, from On/Off Starters to VFD’s (Variable Frequency Drive)

Includes:

• Silencer, Throttling Valve, Manual Ball Relief Valve, 4 Anti-Vibration Pads, Wedge Anchors & 2 Caps (for potential unused inlet/outlet)

Optional Additions:

• Manual Filter Shaker:  The back and forth movement of the filters will help dislodge a portion of build up particulate on the filters
• Magnahelic Gauge:  Reads pressure differential of the filters and indicates when filter cleaning or replacement is needed
